637-M44-230-BN5

Active

EDAC Inc.

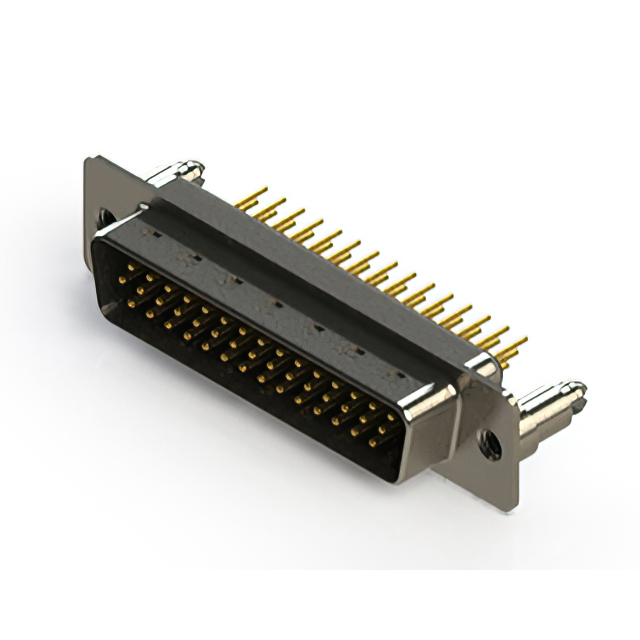

D SUBMINIATURE CONNECTOR, 44 CONTACT(S), MALE, 0.09 INCH PITCH, SOLDER TERMINAL, #4-40 UNC, PLUG,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

637-M44-230-BN5

Active

EDAC Inc.

D SUBMINIATURE CONNECTOR, 44 CONTACT(S), MALE, 0.09 INCH PITCH, SOLDER TERMINAL, #4-40 UNC, PLUG,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	637-M44-230-BN5

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA9T), Nylon 9T
Features	Board Lock, Shielded, Grounding Indents
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	44
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	B, DB
Shell Size, Connector Layout [x]	3
Termination	Solder

637-M44 Series

Part	Flange Feature	Material Flammability Rating	Connector Style	Connector Type	Contact Finish	Features	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Shell Material, Finish	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [custom]	Contact Material	Color	Current Rating (Amps)	Number of Rows	Dielectric Material	Contact Finish Thickness
EDAC Inc. 637-M44-330-BN2	Housing/Shell (4-40)	UL94 V-0	D-Sub High Density	Male Pins Plug	Gold	Grounding Indents Shielded	Signal	15 µin	0.38 µm	Nickel Plated Steel	Solder	-55 °C	125 °C	Through Hole	44	3	B DB	Copper Alloy	Black	5 A	3	Polyamide (PA9T) Nylon 9T
EDAC Inc. 637-M44-332-BN5	Housing/Shell (4-40)	UL94 V-0	D-Sub High Density	Male Pins Plug	Gold	Board Lock Grounding Indents Shielded	Signal	15 µin	0.38 µm	Nickel Plated Steel		-55 °C	125 °C	Free Hanging (In-Line)	44	3	B DB	Copper Alloy	Black	5 A	3	Polyamide (PA9T) Nylon 9T
EDAC Inc. 637-M44-232-BT5	Housing/Shell (4-40)	UL94 V-0	D-Sub High Density	Male Pins Plug	Gold	Board Lock Grounding Indents Shielded	Signal					-55 °C	125 °C	Free Hanging (In-Line)	44	3	B DB	Copper Alloy	Black	5 A	3	Polyamide (PA9T) Nylon 9T	Flash
EDAC Inc. 637-M44-230-BN2	Housing/Shell (4-40)	UL94 V-0	D-Sub High Density	Male Pins Plug	Gold	Grounding Indents Shielded	Signal			Nickel Plated Steel	Solder	-55 °C	125 °C	Through Hole	44	3	B DB	Copper Alloy	Black	5 A	3	Polyamide (PA9T) Nylon 9T	Flash
EDAC Inc. 637-M44-230-BN5	Housing/Shell (4-40)	UL94 V-0	D-Sub High Density	Male Pins Plug	Gold	Board Lock Grounding Indents Shielded	Signal			Nickel Plated Steel	Solder	-55 °C	125 °C	Through Hole	44	3	B DB	Copper Alloy	Black	5 A	3	Polyamide (PA9T) Nylon 9T	Flash
EDAC Inc. 637-M44-330-BN4	Housing/Shell (4-40)	UL94 V-0	D-Sub High Density	Male Pins Plug	Gold	Grounding Indents Shielded	Signal	15 µin	0.38 µm	Nickel Plated Steel	Solder	-55 °C	125 °C	Through Hole	44	3	B DB	Copper Alloy	Black	5 A	3	Polyamide (PA9T) Nylon 9T
EDAC Inc. 637-M44-632-BT2	Housing/Shell (4-40)	UL94 V-0	D-Sub High Density	Male Pins Plug	Gold	Grounding Indents Shielded	Signal	30 Áin	0.76 Ám			-55 °C	125 °C	Free Hanging (In-Line)	44	3	B DB	Copper Alloy	Black	5 A	3	Polyamide (PA9T) Nylon 9T
EDAC Inc. 637-M44-630-BN2	Housing/Shell (4-40)	UL94 V-0	D-Sub High Density	Male Pins Plug	Gold	Grounding Indents Shielded	Signal	30 Áin	0.76 Ám	Nickel Plated Steel	Solder	-55 °C	125 °C	Through Hole	44	3	B DB	Copper Alloy	Black	5 A	3	Polyamide (PA9T) Nylon 9T
EDAC Inc. 637-M44-230-BT6	Housing/Shell (4-40)	UL94 V-0	D-Sub High Density	Male Pins Plug	Gold	Board Lock Grounding Indents Shielded	Signal				Solder	-55 °C	125 °C	Through Hole	44	3	B DB	Copper Alloy	Black	5 A	3	Polyamide (PA9T) Nylon 9T	Flash
EDAC Inc. 637-M44-632-BT3	Housing/Shell (4-40)	UL94 V-0	D-Sub High Density	Male Pins Plug	Gold	Grounding Indents Shielded	Signal	30 Áin	0.76 Ám			-55 °C	125 °C	Free Hanging (In-Line)	44	3	B DB	Copper Alloy	Black	5 A	3	Polyamide (PA9T) Nylon 9T

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 7.21

Description

General part information

637-M44 Series

44 Position D-Sub, High Density Plug, Male Pins Connector
