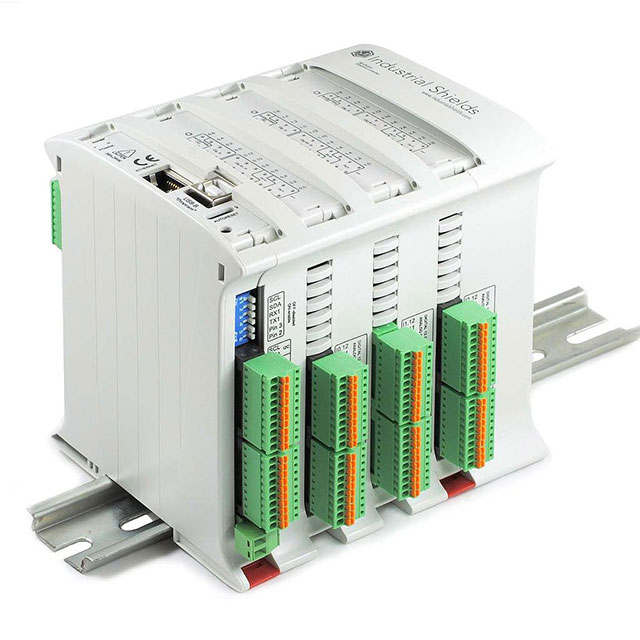

IS.MDUINO.54ARA+
ActiveIndustrial Shields
PLC, M-DUINO, ETHERNET, 54ARA I/O ANALOGUE/DIGITAL PLUS
Deep-Dive with AI
Search across all available documentation for this part.
IS.MDUINO.54ARA+
ActiveIndustrial Shields
PLC, M-DUINO, ETHERNET, 54ARA I/O ANALOGUE/DIGITAL PLUS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | IS.MDUINO.54ARA+ | IS.MD Series |
|---|---|---|
| Communications | RS-232, USB, RS-485, Ethernet | RS-232, USB, RS-485, Ethernet |
| Display Type | No Display | No Display |
| Expandable [Max] | 127 Modules | 127 Modules |
| Features | Power Supply, Manual, Cable | Power Supply, Manual, Cable |
| Memory Size | 2 Gbit | 2 Gbit |
| Mounting Type | DIN Rail | DIN Rail |
| Number of Inputs and Type | - | 36 |
| Number of Inputs and Type | - | 20 |
| Number of Inputs and Type | - | 16 |
| Number of Inputs and Type [custom] | 15 | 4 - 15 |
| Number of Inputs and Type [custom] | 14 | 6 - 14 |
| Number of Outputs and Type | - | 3 - 10 |
| Number of Outputs and Type [custom] | 8 | 8 - 23 |
| Number of Outputs and Type [custom] | 9 | 5 - 14 |
| Number of Outputs and Type [custom] | 8 | 6 - 8 |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Voltage - Supply [Max] | 24 V | 24 V |
| Voltage - Supply [Min] | 12 V | 12 V |
IS.MD Series
PLC, M-DUINO, ETHERNET, 38AR I/O ANALOGUE/DIGITAL PLUS
| Part | Number of Inputs and Type [custom] | Number of Inputs and Type [custom] | Expandable [Max] | Voltage - Supply [Max] | Voltage - Supply [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Display Type | Features | Communications | Mounting Type | Memory Size | Number of Outputs and Type [custom] | Number of Outputs and Type [custom] | Number of Outputs and Type [custom] | Number of Inputs and Type [custom] | Number of Inputs and Type [custom] | Number of Inputs and Type [custom] | Number of Outputs and Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Industrial Shields IS.MDUINO.38AR+ | 9 | 10 | 127 Modules | 24 V | 12 V | 60 °C | 0 °C | No Display | Cable, Manual, Power Supply | Ethernet, RS-232, RS-485, USB | DIN Rail | 2 Gbit | 6 | 8 | 5 | ||||
Industrial Shields IS.MDUINO.54ARA+ | 15 | 14 | 127 Modules | 24 V | 12 V | 60 °C | 0 °C | No Display | Cable, Manual, Power Supply | Ethernet, RS-232, RS-485, USB | DIN Rail | 2 Gbit | 8 | 8 | 9 | ||||
Industrial Shields IS.MDUINO.58+ | 127 Modules | 24 V | 12 V | 60 °C | 0 °C | No Display | Cable, Manual, Power Supply | Ethernet, RS-232, RS-485, USB | DIN Rail | 2 Gbit | 8 | 14 | 36 | 20 | 16 | ||||
Industrial Shields IS.MDUINO.57R+ | 6 | 12 | 127 Modules | 24 V | 12 V | 60 °C | 0 °C | No Display | Cable, Manual, Power Supply | Ethernet, RS-232, RS-485, USB | DIN Rail | 2 Gbit | 8 | 23 | |||||
Industrial Shields IS.MDUINO.21+ | 7 | 6 | 127 Modules | 24 V | 12 V | 60 °C | 0 °C | No Display | Cable, Manual, Power Supply | Ethernet, RS-232, RS-485, USB | DIN Rail | 2 Gbit | 3, 5 | ||||||
Industrial Shields IS.MDUINO.38R+ | 4 | 8 | 127 Modules | 24 V | 12 V | 60 °C | 0 °C | No Display | Cable, Manual, Power Supply | Ethernet, RS-232, RS-485, USB | DIN Rail | 2 Gbit | 6 | 16 | |||||
Industrial Shields IS.MDUINO.42+ | 14 | 12 | 127 Modules | 24 V | 12 V | 60 °C | 0 °C | No Display | Cable, Manual, Power Supply | Ethernet, RS-232, RS-485, USB | DIN Rail | 2 Gbit | 6, 10 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
IS.MD Series
Programmable Logic Controller (PLC) DIN Rail 12 ~ 24VDC
