NTU-2200-124US
ActiveMEAN WELL USA Inc.
I/P +24V120A
NTU-2200-124US
ActiveMEAN WELL USA Inc.
I/P +24V120A
Description
General part information

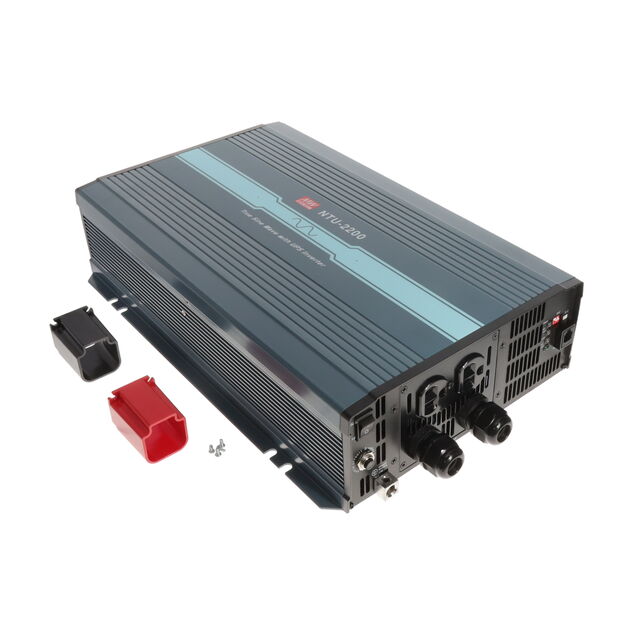

NTU-2200-124US
24VDC Voltage Input 2.2 kW Power Output Continuous Inverter, UPS 2 AC Outlets NEMA 5-15R (2) North America
Technical Specifications
Parameters and characteristics for this part
| Specification | NTU-2200-124US |
|---|---|
| AC Outlets (Count) | 2 count |
| Connector - AC Output | NEMA 5-15R |
| Connector - AC Output Quantity (NEMA 5-15R) | 2 pcs |
| Connector - Voltage Input | Terminals |
| Power - Output Continuous | 2.2 kW |
| Power - Output Surge | 4.4 kW |
| Region Utilized | North America |
| Remote Capability | Yes |
| Size Height | 3.86 " |
| Size Length | 16.54 " |
| Size Width | 10.63 " |
| Type | Inverter, UPS |
| Voltage - Input | 24 V |
| Voltage - Output | 110 V |
