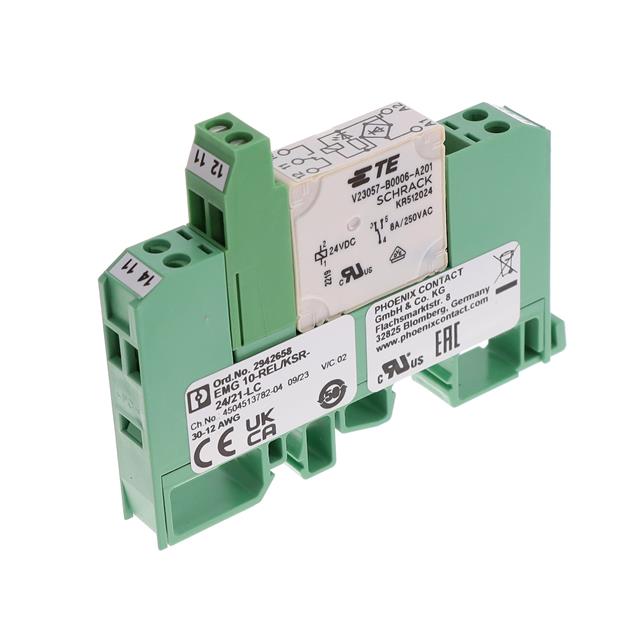

2942658

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 6A 24V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 6A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	2942658

Approval Agency	UL, EAC, cULus
Coil Current	21 mA
Coil Resistance	1.14 kOhms
Coil Type	Non Latching
Coil Voltage	24 VAC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	6 A
Features	Lighted Indicator, Socket Included
Load - Max Switching	140 W, 1500 VA
Mounting Type	DIN Rail
Operate Time	7 ms
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Relay Type	General Purpose
Release Time	11 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Screw Terminal

RELAY GEN PURPOSE SPDT 6A 24V

Part	Relay Type	Switching Voltage	Coil Current	Coil Voltage	Contact Form	Contact Rating (Current)	Coil Type	Coil Resistance	Contact Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Operate Time	Features	Load - Max Switching	Approval Agency	Release Time
Phoenix Contact 2942658	General Purpose	250 VAC, 250 VDC	21 mA	24 VAC	SPDT (1 Form C)	6 A	Non Latching	1.14 kOhms	Silver Nickel (AgNi)	DIN Rail	-20 C	40 °C	Screw Terminal	7 ms	Lighted Indicator, Socket Included	140 W, 1500 VA	cULus, EAC, UL	11 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 70.15

General part information

General Purpose Relay SPDT (1 Form C) 24VAC/DC Coil DIN Rail
