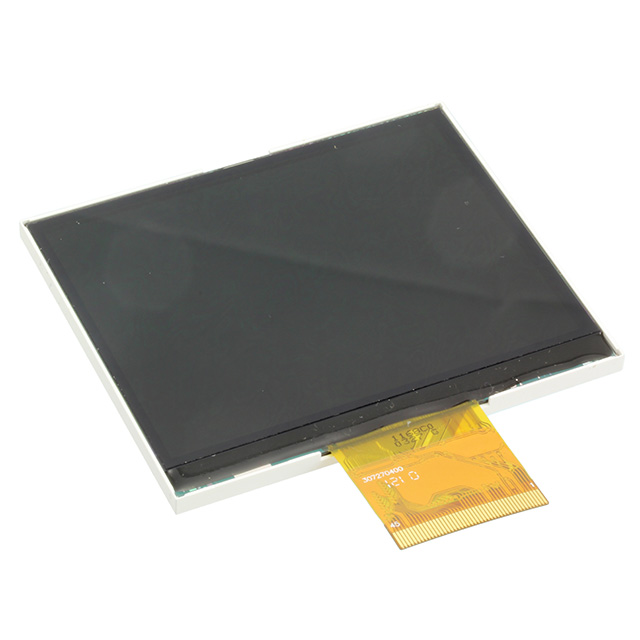

TVL-55738GD032J-LW-G-AAN
ObsoleteKyocera International, Inc.
LCD 3.2" TFT DISPLAY
TVL-55738GD032J-LW-G-AAN
ObsoleteKyocera International, Inc.
LCD 3.2" TFT DISPLAY
Description
General part information
TVL-55738GD032J-LW-G-AAN
Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel/Serial 3.2" (81.28mm) 320 x 240 (QVGA)
Technical Specifications
Parameters and characteristics for this part
| Specification | TVL-55738GD032J-LW-G-AAN |
|---|---|
| Backlight Color | White |
| Backlight Type | LED |
| Diagonal Screen Size | 3.2 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pitch Height | 0.2 mm |
| Dot Pitch Width | 0.2 mm |
| Dot Pixels (Horizontal) | 320 pixels |
| Dot Pixels (Resolution) | QVGA |
| Dot Pixels (Vertical) | 240 pixels |
| Dot Size Height | 0.2 mm |
| Dot Size Width | 0.68 mm |
| Graphics Color | Red, Green, Blue |
| Interface | Parallel/Serial |
| Viewing Area Height | 48.78 mm |
| Viewing Area Width | 65.04 mm |
