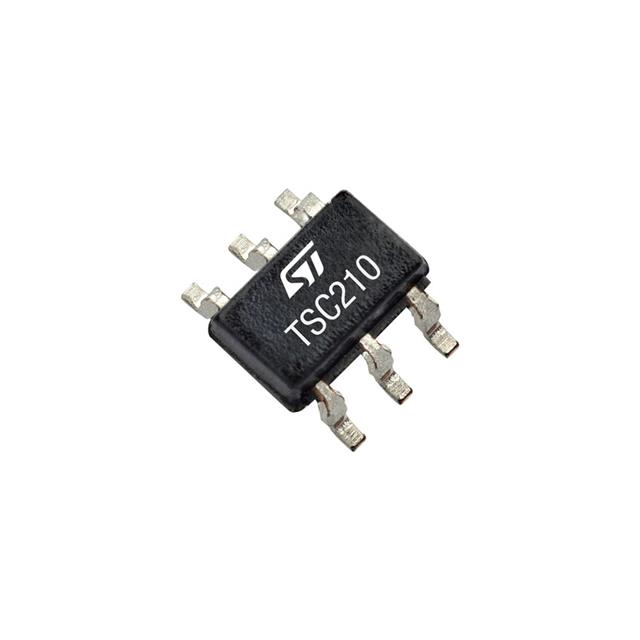

Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TSC210IYCT | TSC210 Series |
|---|---|---|
| - | - | |
| -3db Bandwidth | - | 25 kHz |
| Amplifier Type | Current Sense | Current Sense |
| Current - Input Bias | 28 µA | 28 µA |
| Current - Supply | 65 µA | 65 µA |
| Gain Bandwidth Product | 25 kHz | 25 kHz |
| Grade | - | Automotive |
| Mounting Type | Surface Mount | Surface Mount, Wettable Flank |
| Number of Circuits | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | Push-Pull | Push-Pull |
| Package / Case | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363, 10-WFQFN |
| Qualification | - | AEC-Q100 |
| Slew Rate | 0.2 V/µs | 0.2 V/µs |
| Supplier Device Package | SC-70-6 | SC-70-6, 10-QFN (1.8x1.4) |
| Voltage - Input Offset | 35 µV | 35 µV |
| Voltage - Supply Span (Max) [Max] | 26 V | 26 V |
| Voltage - Supply Span (Min) [Min] | 2.7 V | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.23 | |
| 10 | $ 2.00 | |||
| 25 | $ 1.89 | |||
| 100 | $ 1.61 | |||
| 250 | $ 1.51 | |||
| 500 | $ 1.32 | |||
| 1000 | $ 1.10 | |||
| Digi-Reel® | 1 | $ 2.23 | ||
| 10 | $ 2.00 | |||
| 25 | $ 1.89 | |||
| 100 | $ 1.61 | |||
| 250 | $ 1.51 | |||
| 500 | $ 1.32 | |||
| 1000 | $ 1.10 | |||
| Tape & Reel (TR) | 3000 | $ 0.93 | ||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 1.58 | |
| 10 | $ 1.14 | |||
| 25 | $ 1.11 | |||
| 50 | $ 1.07 | |||
| 100 | $ 1.04 | |||
| 250 | $ 0.98 | |||
| 500 | $ 0.95 | |||
| 1000 | $ 0.89 | |||
TSC210 Series
Low / High side bidirectional, zero-drift, current sense amplifiers
| Part | Supplier Device Package | Mounting Type | Current - Supply | Voltage - Supply Span (Min) [Min] | -3db Bandwidth | Amplifier Type | Voltage - Input Offset | Number of Circuits | Operating Temperature [Max] | Operating Temperature [Min] | Slew Rate | Voltage - Supply Span (Max) [Max] | Package / Case | Current - Input Bias | Gain Bandwidth Product | Output Type | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics TSC210ICT | ||||||||||||||||||
STMicroelectronics TSC210ICT | SC-70-6 | Surface Mount | 65 µA | 2.7 V | 25 kHz | Current Sense | 35 µV | 1 | 125 °C | -40 °C | 0.2 V/µs | 26 V | 6-TSSOP, SC-88, SOT-363 | 28 µA | ||||
STMicroelectronics TSC210IYCT | ||||||||||||||||||
STMicroelectronics TSC210IYQT | ||||||||||||||||||
STMicroelectronics TSC210IYCT | SC-70-6 | Surface Mount | 65 µA | 2.7 V | Current Sense | 35 µV | 1 | 125 °C | -40 °C | 0.2 V/µs | 26 V | 6-TSSOP, SC-88, SOT-363 | 28 µA | 25 kHz | Push-Pull | |||
STMicroelectronics TSC210IQT | ||||||||||||||||||
STMicroelectronics TSC210IQT | 10-QFN (1.8x1.4) | Surface Mount, Wettable Flank | 65 µA | 2.7 V | Current Sense | 35 µV | 1 | 125 °C | -40 °C | 0.2 V/µs | 26 V | 10-WFQFN | 28 µA | 25 kHz | Push-Pull | |||
STMicroelectronics TSC210ICT | ||||||||||||||||||
STMicroelectronics TSC210IYCT | ||||||||||||||||||
STMicroelectronics TSC210IYQT | 10-QFN (1.8x1.4) | Surface Mount | 65 µA | 2.7 V | 25 kHz | Current Sense | 35 µV | 1 | 125 °C | -40 °C | 0.2 V/µs | 26 V | 10-WFQFN | 28 µA | AEC-Q100 | Automotive |
Description
General part information
TSC210 Series
The TSC210, TSC211, TSC212, TSC213, TSC214 and TSC215 are a series of zero-drift current sense amplifiers that can sense current via a shunt resistor over a wide range of common mode voltages from -0.3 to +26 V, whatever the supply voltage is. They are available in three different versions, each of them having a different gain. The TSC21x are designed with a specific zero-drift architecture, which can achieve high precision.
The TSC21x are current sense amplifiers that may be used in various functions such as precision current measurement, over current protection, current monitoring, feedback loops.
These devices fully operate over the broad supply voltage range of 2.7 to 26 V and over the industrial temperature range -40 to 125 °C.
