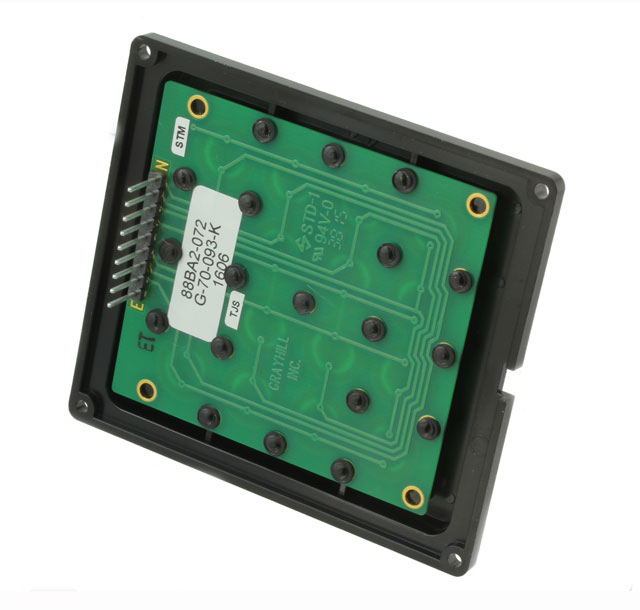

88BA2-072

Active

Grayhill Inc.

SWITCH KEYPAD 16KEY 0.01A 24V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH KEYPAD 16KEY 0.01A 24V

Technical Specifications

Parameters and characteristics for this part

SWITCH KEYPAD 16KEY 0.01A 24V

Part	Ingress Protection	Key Color	Number of Keys	Termination Style	Matrix (Columns x Rows) [custom]	Matrix (Columns x Rows) [custom]	Illumination	Key Type	Output Type	Operational Life	Operating Temperature [Min]	Operating Temperature [Max]	Legend Type	Contact Rating @ Voltage	Switch Type	Mounting Type	Legend Color	Legend
Grayhill Inc. 88BA2-072	IP42	Blue	16	Pin Header	4	4	Non-Illuminated	Polyester Overlay	1.81 mOhm	3000000 Cycles	-40 °C	80 C	Fixed	0.01 A, 24 VDC	Snap Dome	Panel Mount, Front or Rear	White	0 ~ 9, A ~ F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keypad Switch 16 Polyester Overlay Keys Snap Dome Contacts Matrix Output Non-Illuminated 0.01A @ 24VDC
