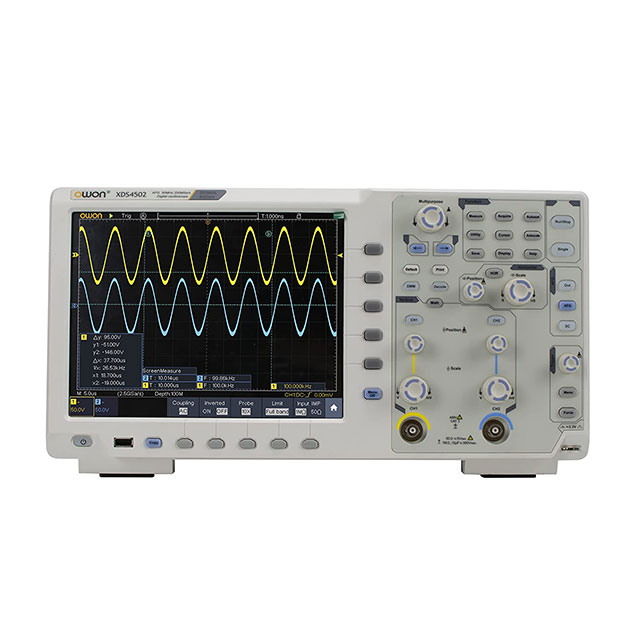

XDS4502
ActiveOwon Technology Lilliput Electronics (USA) Inc
XDS4502 10.4" 4CH 500MHZ OSCOPE
XDS4502
ActiveOwon Technology Lilliput Electronics (USA) Inc
XDS4502 10.4" 4CH 500MHZ OSCOPE
Description
General part information
XDS4502
500 MHz Bench Oscilloscopes Ethernet, RS232, USB Interface LCD - Color Display 2 Channel 400V Record
Technical Specifications
Parameters and characteristics for this part
| Specification | XDS4502 |
|---|---|
| Analog Channels | 2 |
| Bandwidth | 500 MHz |
| Channel Types | Analog |
| Channels (Count) | 2 |
| Display Type | LCD - Color |
| Function | Record |
| Includes | Probe, Power Cord, Manual, Test Lead |
| Input Impedance | 10 MOhm |
| Interface | Ethernet, USB, RS232 |
| Rise Time (Typ) | 0.7 ns |
| Sampling Rate (Per Second) | 250 MHz |
| Type | Bench |
| Voltage - Input (Max) | 400 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
