524441-E
ActiveTE Connectivity AMP Connectors
MCBP 6 F 2 035 137 * 197 1,27 TRAY VR2 J
524441-E
ActiveTE Connectivity AMP Connectors
MCBP 6 F 2 035 137 * 197 1,27 TRAY VR2 J
Description
General part information
- Series

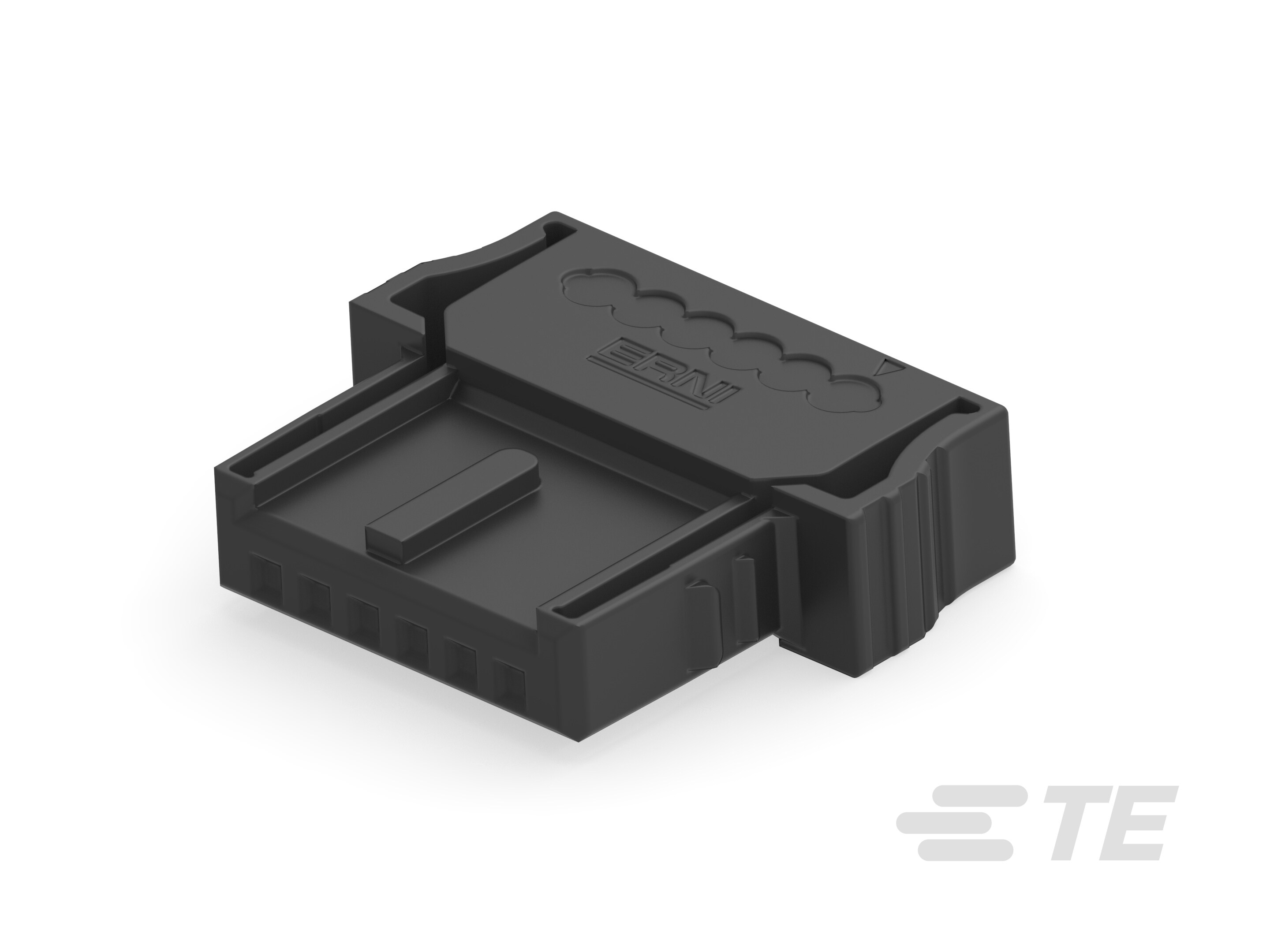

Connector Assembly, Receptacle, Cable-to-Board, 6 Position, 1.27 mm [.05 in] Centerline, Insulation Displacement (IDC), 1 Row, Black, ERNI MicroBridge
Technical Specifications
Parameters and characteristics for this part
| Specification | 524441-E |
|---|---|
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Pitch | 0.05 in |
| Wire Type | Ribbon Cable, Discrete |
