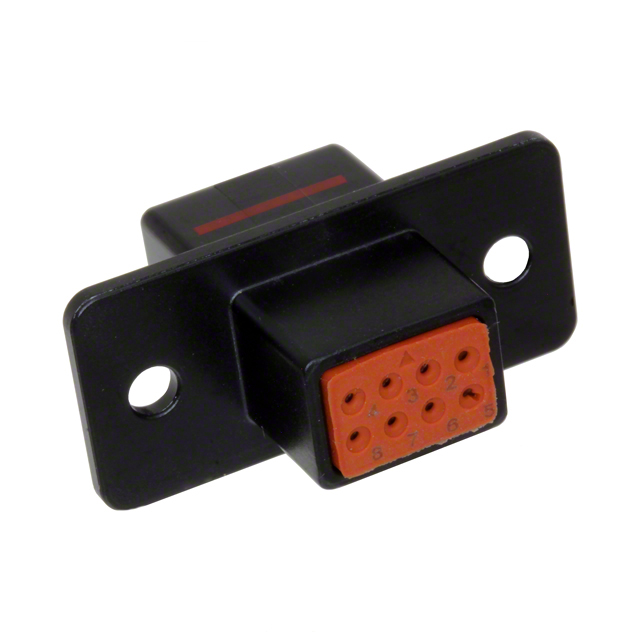

SQR822700
ActiveAMPHENOL PCD
CONN RCPT HSG 8POS 22AWG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SQR822700
ActiveAMPHENOL PCD
CONN RCPT HSG 8POS 22AWG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SQR822700 | SQR82 Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle, Plug |
| Contact Termination | Crimp | Crimp |
| Contact Type | Male Pin | Male Pin, Male or Female |
| Fastening Type | Latch Lock | Latch Lock |
| Features | IP67 | IP67 |
| Insulation Material | Polyetherimide (PEI) | Polyetherimide (PEI) |
| Mounting Type | - | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 8 | 8 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
SQR82 Series
CONN RCPT HSG 8POS 22AWG
| Part | Color | Insulation Material | Contact Termination | Number of Rows | Connector Type | Note | Fastening Type | Number of Positions | Features | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AMPHENOL PCD SQR822700 | Black | Polyetherimide (PEI) | Crimp | 2 | Receptacle | Contacts Not Included | Latch Lock | 8 | IP67 | Male Pin | -65 ░C | 150 °C | |
AMPHENOL PCD SQR822550 | Polyetherimide (PEI) | Crimp | 2 | Receptacle | Contacts Not Included | Latch Lock | 8 | IP67 | Male or Female | -65 ░C | 150 °C | ||
AMPHENOL PCD SQR822100 | Polyetherimide (PEI) | Crimp | 2 | Plug | Contacts Not Included | Latch Lock | 8 | IP67 | Male or Female | -65 ░C | 150 °C | Free Hanging (In-Line) | |
AMPHENOL PCD SQR822150 | Polyetherimide (PEI) | Crimp | 2 | Plug | Contacts Not Included | Latch Lock | 8 | IP67 | Male or Female | -65 ░C | 150 °C | Free Hanging (In-Line) | |
AMPHENOL PCD SQR822200 | Polyetherimide (PEI) | Crimp | 2 | Receptacle | Contacts Not Included | Latch Lock | 8 | IP67 | Male or Female | -65 ░C | 150 °C | Free Hanging (In-Line) | |
AMPHENOL PCD SQR822250 | Polyetherimide (PEI) | Crimp | 2 | Receptacle | Contacts Not Included | Latch Lock | 8 | IP67 | Male or Female | -65 ░C | 150 °C | Free Hanging (In-Line) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.18 | |
| 10 | $ 11.67 | |||
| 25 | $ 10.55 | |||
| 50 | $ 9.80 | |||
| 100 | $ 9.11 | |||
Description
General part information
SQR82 Series
8 Rectangular Connectors - Housings Receptacle Black
