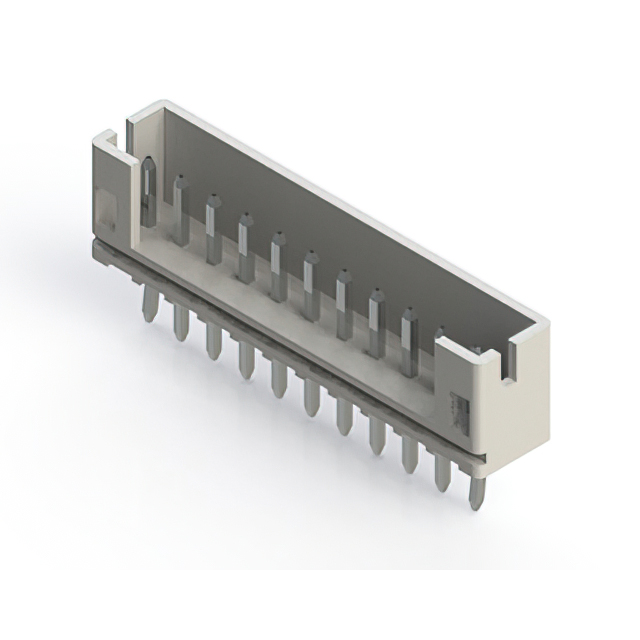

140-511-415-001

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 11 P.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

140-511-415-001

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 11 P.

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	140-511-415-001	140-511 Series

Color	-	Natural
Connector Type	Header	Header, Receptacle
Contact Finish - Post	Tin	Tin
Contact Length - Post	-	0.134 in
Contact Length - Post	-	3.4 mm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Termination	-	Crimp
Contact Type	Male Pin	Male Pin, Female Socket
Current Rating (Amps)	2 A	2 A
Fastening Type	Detent Lock	Detent Lock
Features	-	Solder Retention, Polarizing Key
Insulation Color	Natural	Natural
Insulation Height	0.24 in	0.185 - 0.24 in
Insulation Height	6.1 mm	4.7 - 6.1 mm
Insulation Height	-	5.51 mm
Insulation Height	-	0.217 in
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6, Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Right Angle, Surface Mount, Through Hole, Free Hanging (In-Line)
Note	-	Contacts Not Included
Number of Positions	11	11
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	85 - 105 ░C
Operating Temperature [Min]	-40 °C	-40 - -25 °C
Pitch	-	0.079 in
Pitch	-	2 mm
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Kinked Pin, Solder	Kinked Pin, Solder, Solder
Voltage Rating	100 VAC	100 VAC

140-511 Series

2.0MM PITCH CONNECTOR WITH 11 P.

Part	Mounting Type	Insulation Material	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows	Termination	Style	Number of Positions	Shrouding	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Type	Insulation Color	Fastening Type	Current Rating (Amps)	Material Flammability Rating	Voltage Rating	Connector Type	Number of Positions Loaded	Contact Finish - Post	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height [custom]	Insulation Height [custom]	Features	Note	Pitch [x]	Pitch [x]	Color	Contact Termination
EDAC Inc. 140-511-415-000	Through Hole, Right Angle	Polyamide (PA66), Nylon 6/6	0.079 in	2 mm	1	Kinked Pin, Solder	Board to Cable/Wire	11	Shrouded - 4 Wall	Brass	-40 °C	105 ░C	0.197 in	5 mm	Male Pin	Natural	Detent Lock	2 A	UL94 V-0	100 VAC	Header	All	Tin	Square
EDAC Inc. 140-511-415-100	Through Hole, Right Angle	Polyamide (PA66), Nylon 6/6	0.079 in	2 mm	1	Solder	Board to Cable/Wire	11	Shrouded - 4 Wall	Brass	-40 °C	105 ░C	0.185 in	4.7 mm	Male Pin	Natural	Detent Lock	2 A	UL94 V-0	100 VAC	Header	All	Tin	Square	0.134 in	3.4 mm
EDAC Inc. 140-511-417-011	Surface Mount	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	1	Solder	Board to Cable/Wire	11	Shrouded - 4 Wall	Brass	-40 °C	105 ░C			Male Pin	Natural	Detent Lock	2 A	UL94 V-0	100 VAC	Header	All	Tin	Square			5.51 mm	0.217 in	Solder Retention
EDAC Inc. 140-511-415-101	Through Hole	Polyamide (PA66), Nylon 6/6	0.079 in	2 mm	1	Solder	Board to Cable/Wire	11	Shrouded - 4 Wall	Brass	-40 °C	105 ░C	0.24 in	6.1 mm	Male Pin	Natural	Detent Lock	2 A	UL94 V-0	100 VAC	Header	All	Tin	Square
EDAC Inc. 140-511-210-011	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6			1			11			-25 °C	85 °C			Female Socket		Detent Lock				Receptacle								Polarizing Key	Contacts Not Included	0.079 in	2 mm	Natural	Crimp
EDAC Inc. 140-511-415-001	Through Hole	Polyamide (PA66), Nylon 6/6	0.079 in	2 mm	1	Kinked Pin, Solder	Board to Cable/Wire	11	Shrouded - 4 Wall	Brass	-40 °C	105 ░C	0.24 in	6.1 mm	Male Pin	Natural	Detent Lock	2 A	UL94 V-0	100 VAC	Header	All	Tin	Square
