171224K400N-F
ActiveCornell Dubilier Knowles
CAP FILM 0.22UF 10% 400VDC RAD
171224K400N-F
ActiveCornell Dubilier Knowles
CAP FILM 0.22UF 10% 400VDC RAD
Description
General part information
171224K400N-F

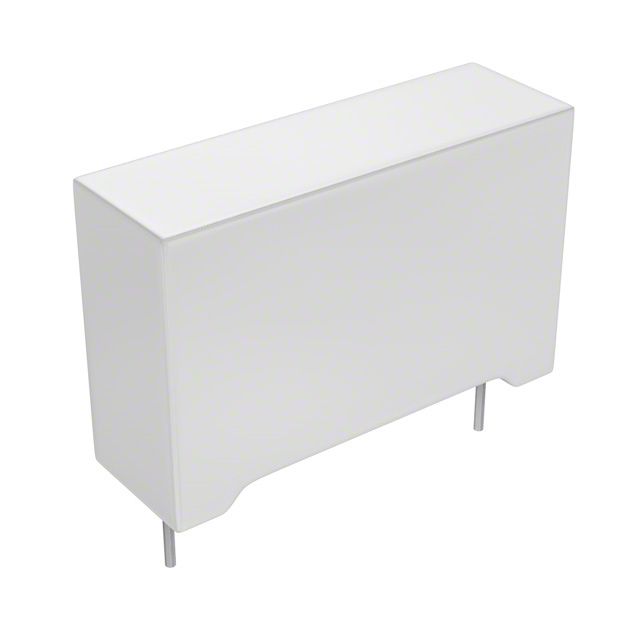

0.22 µF Film Capacitor 220V 400V Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | 171224K400N-F |
|---|---|
| Applications | High Pulse, DV/DT |
| Capacitance | 0.22 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 0.669 in |
| Lead Spacing | 0.886 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 1.043 in |
| Size / Dimension Width | 0.335 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 220 V |
| Voltage Rating - DC | 400 V |
