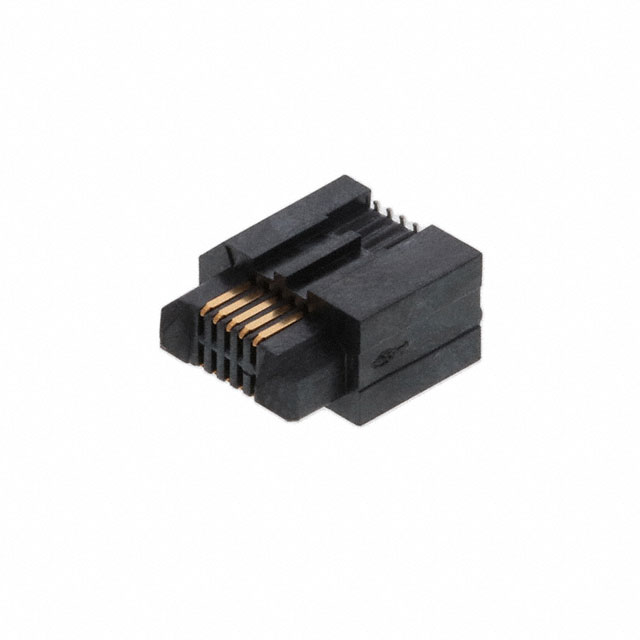

ERM8-005-08.0-L-DV-TR

Active

Samtec Inc.

CONN HDR 10POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ERM8 Datasheet +1

ERM8-005-08.0-L-DV-TR

Active

Samtec Inc.

CONN HDR 10POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet ERM8 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERM8-005-08.0-L-DV-TR

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide
Height Above Board	8.91 mm
Height Above Board	0.351 in
Mated Stacking Heights	12 mm, 15 mm, 10 mm
Mounting Type	Surface Mount
Number of Positions	10
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

ERM8-005 Series

Part	Contact Finish	Mounting Type	Pitch [x]	Pitch [x]	Number of Positions	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Connector Type	Mated Stacking Heights	Height Above Board	Height Above Board
Samtec Inc. ERM8-005-01-L-D-EM2-SL-TR	Gold	Board Edge Straddle Mount	0.8 mm	0.031 in	10	Latches	10 Áin	0.25 Ám	2	Header Center Strip Contacts
Samtec Inc. ERM8-005-02.0-S-DV-TR	Gold	Surface Mount	0.8 mm	0.031 in	10	Board Guide	30 Áin	0.76 Ám	2	Header Center Strip Contacts	7 mm 9 mm 12 mm	5.97 mm	0.235 in
Samtec Inc. ERM8-005-08.0-L-DV-TR	Gold	Surface Mount	0.8 mm	0.031 in	10	Board Guide	10 Áin	0.25 Ám	2	Header Center Strip Contacts	10 mm 12 mm 15 mm	8.91 mm	0.351 in
Samtec Inc. ERM8-005-05.0-L-DV-K-TR	Gold	Surface Mount	0.8 mm	0.031 in	10	Board Guide Pick and Place	10 Áin	0.25 Ám	2	Header Center Strip Contacts	10 mm 12 mm 15 mm	8.91 mm	0.351 in
Samtec Inc. ERM8-005-01-S-D-EM2-L-TR	Gold	Board Edge Straddle Mount	0.8 mm	0.031 in	10	Latches	30 Áin	0.76 Ám	2	Header Center Strip Contacts
Samtec Inc. ERM8-005-09.0-L-DV-TR	Gold	Surface Mount	0.8 mm	0.031 in	10	Board Guide	10 Áin	0.25 Ám	2	Header Center Strip Contacts	14 mm 16 mm 19 mm	12.91 mm	0.508 in
Samtec Inc. ERM8-005-05.0-S-DV-L-K-TR	Gold	Surface Mount	0.8 mm	0.031 in	10	Board Guide Latches Pick and Place	30 Áin	0.76 Ám	2	Header Center Strip Contacts	10 mm 12 mm 15 mm	8.91 mm	0.351 in
Samtec Inc. ERM8-005-05.0-S-DV-L-TR	Gold	Surface Mount	0.8 mm	0.031 in	10	Board Guide Latches	30 Áin	0.76 Ám	2	Header Center Strip Contacts	10 mm 12 mm 15 mm	8.91 mm	0.351 in
Samtec Inc. ERM8-005-02.0-L-DV-TR	Gold	Surface Mount	0.8 mm	0.031 in	10	Board Guide	10 Áin	0.25 Ám	2	Header Center Strip Contacts	7 mm 9 mm 12 mm	5.97 mm	0.235 in
Samtec Inc. ERM8-005-05.0-L-DV-EGP-K-TR	Gold	Surface Mount	0.8 mm	0.031 in	10	Board Guide Mating Guide Pick and Place	10 Áin	0.25 Ám	2	Header Center Strip Contacts	10 mm 12 mm 15 mm	8.91 mm	0.351 in
