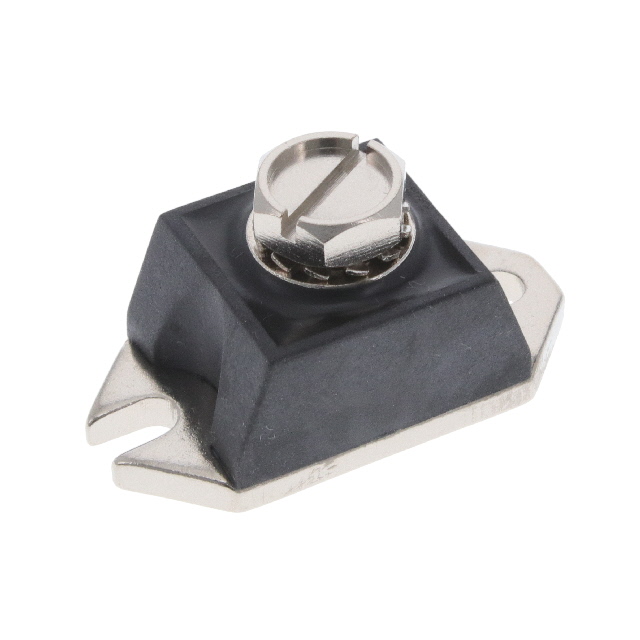

182NQ030R-1

Active

SMC Diode Solutions

DIODE SCHOTTKY 30V 180A PRM1-1

Search across all available documentation for this part.

Active

SMC Diode Solutions

DIODE SCHOTTKY 30V 180A PRM1-1

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	182NQ030R-1	182NQ Series

Capacitance @ Vr, F	7000 pF	7000 - 7700 pF
Current - Average Rectified (Io)	180 A	180 A
Current - Reverse Leakage @ Vr	15 mA	15 mA
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature - Junction [Max]	150 °C	150 °C
Operating Temperature - Junction [Min]	-55 °C	-55 °C
Package / Case	HALF-PAK	HALF-PAK
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	PRM1-1 (Half Pak Module)	PRM1-1 (Half Pak Module)
Technology	Schottky	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V	30 V
Voltage - Forward (Vf) (Max) @ If [Max]	510 mV	510 mV

DIODE SCHOTTKY 30V 180A PRM1-1

Part	Speed	Voltage - Forward (Vf) (Max) @ If [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Capacitance @ Vr, F	Technology	Supplier Device Package	Package / Case	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]
SMC Diode Solutions 182NQ030-1	200 mA, 500 ns	510 mV	150 °C	-55 °C	15 mA	180 A	7700 pF	Schottky	PRM1-1 (Half Pak Module)	HALF-PAK	Chassis Mount	30 V
SMC Diode Solutions 182NQ030R-1	200 mA, 500 ns	510 mV	150 °C	-55 °C	15 mA	180 A	7000 pF	Schottky	PRM1-1 (Half Pak Module)	HALF-PAK	Chassis Mount	30 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 30 V 180A Chassis Mount PRM1-1 (Half Pak Module)
