APT106N60LC6

Active

Microchip Technology

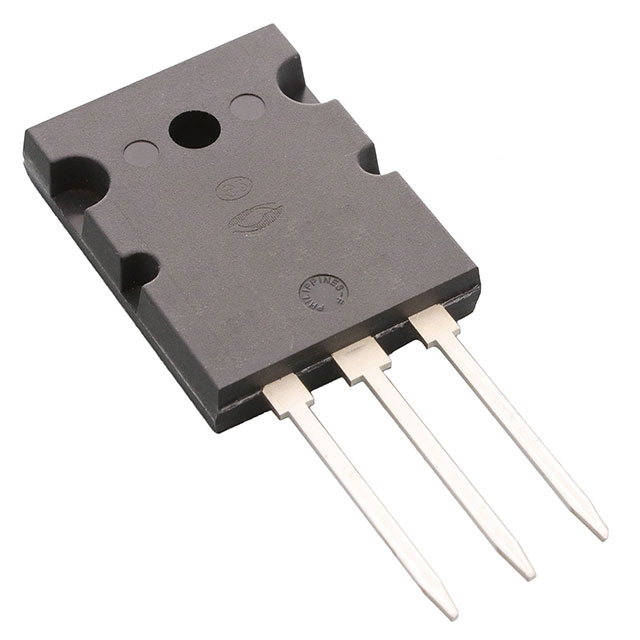

MOSFET N-CH 600V 106A TO264

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAPT38N60BC6, APT38N60SC6 MOSFET SUPERJUNCTION 600 V 38 A TO-247 Datasheet APT30N60BC6, APT30N60SC6 MOSFET SUPERJUNCTION 600 V 30 A TO-247 Datasheet +4

APT106N60LC6

Active

Microchip Technology

MOSFET N-CH 600V 106A TO264

Deep-Dive with AI

DocumentsAPT38N60BC6, APT38N60SC6 MOSFET SUPERJUNCTION 600 V 38 A TO-247 Datasheet APT30N60BC6, APT30N60SC6 MOSFET SUPERJUNCTION 600 V 30 A TO-247 Datasheet +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	APT106N60LC6	APT106 Series

Drain to Source Voltage (Vdss)	600 V	600 V
Drive Voltage (Max Rds On, Min Rds On)	10 V	10 V
FET Type	N-Channel	N-Channel
Gate Charge (Qg) (Max) @ Vgs	308 nC	308 nC
Input Capacitance (Ciss) (Max) @ Vds	8390 pF	8390 pF
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	TO-264AA, TO-264-3	TO-247-3 Variant, TO-264AA, TO-264-3
Power Dissipation (Max)	833 W	833 W
Rds On (Max) @ Id, Vgs [Max]	35 mOhm	35 mOhm
Supplier Device Package	TO-264 (L)	T-MAX™ [B2], TO-264 (L)
Technology	MOSFET (Metal Oxide)	MOSFET (Metal Oxide)
Vgs (Max)	20 V	20 V
Vgs(th) (Max) @ Id	3.5 V	3.5 V

APT106 Series

600V Superjunction MOSFET

Part	Package / Case	Vgs(th) (Max) @ Id	Drain to Source Voltage (Vdss)	Rds On (Max) @ Id, Vgs [Max]	Input Capacitance (Ciss) (Max) @ Vds	FET Type	Supplier Device Package	Vgs (Max)	Power Dissipation (Max)	Mounting Type	Gate Charge (Qg) (Max) @ Vgs	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Drive Voltage (Max Rds On, Min Rds On)
Microchip Technology APT106N60B2C6	TO-247-3 Variant	3.5 V	600 V	35 mOhm	8390 pF	N-Channel	T-MAX™ [B2]	20 V	833 W	Through Hole	308 nC	-55 °C	150 °C	MOSFET (Metal Oxide)	10 V
Microchip Technology APT106N60LC6	TO-264-3, TO-264AA	3.5 V	600 V	35 mOhm	8390 pF	N-Channel	TO-264 (L)	20 V	833 W	Through Hole	308 nC	-55 °C	150 °C	MOSFET (Metal Oxide)	10 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 20.95
		100	$ 18.08
Microchip Direct	TUBE	1	$ 20.95
		100	$ 18.08
		250	$ 17.41
		500	$ 17.01
		1000	$ 16.59
		5000	$ 16.05

Description

General part information

APT106 Series

A family of 600V Superjunction MOSFETs available in a variety of current and package options.

Documents

Technical documentation and resources

APT106N60B2C6, APT106N60LC6 MOSFET SUPERJUNCTION 600 V 106 A TO-247 MAX Datasheet

Data Sheets

APT47N60BC3G, APT47N60SC3G MOSFET SUPERJUNCTION 600 V 47 A TO-247 Datasheet

Data Sheets

APT53N60BC6, APT53N60SC6 MOSFET SUPERJUNCTION 600 V 53 A TO-247 Datasheet

Data Sheets
