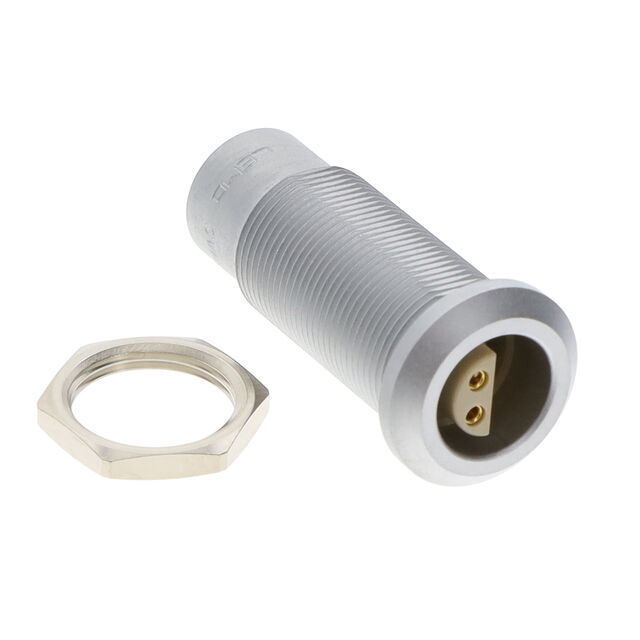

SWH.2S.304.CLLPV
ActiveLEMO
CONN ADPT 4P-4P F/M-F/M PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SWH.2S.304.CLLPV
ActiveLEMO
CONN ADPT 4P-4P F/M-F/M PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SWH.2S.304.CLLPV | SWH.2S Series |
|---|---|---|
| Connector Style | Standard | Standard |
| Convert From (Adapter End) | Female Sockets and Male Pins | Female Sockets and Male Pins, Female Sockets |
| Convert To (Adapter End) | Female Sockets, Male Pins | Female Sockets, Male Pins |
| Current Rating (Amps) | 15 A | 7 - 15 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Mounting Hardware, Vacuumtight | Mounting Hardware, Vacuumtight |
| Housing Color | Silver | Silver |
| Housing Finish | Chrome | Chrome |
| Housing Material | Brass | Brass |
| Includes | 1 Adapter, 1 Nut | 1 Adapter, 1 Nut |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Number of Positions (Convert From) | 4 | 3 - 8 |
| Number of Positions (Convert From) | - | 1 (Coax) |
| Number of Positions (Convert To) | 4 | 1 - 10 |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -20 C | -20 C |
| Orientation (Convert From) | Keyed | Keyed |
| Orientation (Convert To) | Keyed | Keyed |
| Shell Size - Insert (Convert From) | 304 | 275 - 310 |
| Shell Size - Insert (Convert To) | - | 306 |
| Shell Size - Insert (Convert To) | - | 307 |
| Shell Size - Insert (Convert To) [custom] | 304 | 275 - 310 |
| Shielding | Shielded | Shielded |
SWH.2S Series
CONN ADPT 4P-4P F/M-F/M PNL MNT
| Part | Number of Positions (Convert To) | Includes | Housing Material | Orientation (Convert To) | Current Rating (Amps) | Shielding | Features | Shell Size - Insert (Convert From) | Mounting Feature | Convert From (Adapter End) | Fastening Type | Housing Color | Number of Positions (Convert From) | Shell Size - Insert (Convert To) [custom] | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Orientation (Convert From) | Convert To (Adapter End) | Connector Style | Housing Finish | Shell Size - Insert (Convert To) [custom] | Shell Size - Insert (Convert To) [custom] | Number of Positions (Convert From) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO SWH.2S.304.CLLPV | 4 | 1 Adapter, 1 Nut | Brass | Keyed | 15 A | Shielded | Mounting Hardware, Vacuumtight | 304 | Bulkhead - Rear Side Nut | Female Sockets and Male Pins | Push-Pull | Silver | 4 | 304 | IP68 - Dust Tight, Waterproof | -20 C | 80 C | Keyed | Female Sockets, Male Pins | Standard | Chrome | |||
LEMO SWH.2S.306.CLLPV | 6 | 1 Adapter, 1 Nut | Brass | Keyed | 12 A | Shielded | Mounting Hardware, Vacuumtight | 306 | Bulkhead - Rear Side Nut | Female Sockets and Male Pins | Push-Pull | Silver | 6 | IP68 - Dust Tight, Waterproof | -20 C | 80 C | Keyed | Female Sockets, Male Pins | Standard | Chrome | 306 | |||
LEMO SWH.2S.303.CLLPV | 1 Adapter, 1 Nut | Brass | Keyed | 15 A | Shielded | Mounting Hardware, Vacuumtight | 303 | Bulkhead - Rear Side Nut | Female Sockets and Male Pins | Push-Pull | Silver | 3 | 303 | IP68 - Dust Tight, Waterproof | -20 C | 80 C | Keyed | Female Sockets, Male Pins | Standard | Chrome | ||||
LEMO SWH.2S.307.CLLPV | 7 | 1 Adapter, 1 Nut | Brass | Keyed | 9 A, 12 A | Shielded | Mounting Hardware, Vacuumtight | 307 | Bulkhead - Rear Side Nut | Female Sockets and Male Pins | Push-Pull | Silver | 7 | IP68 - Dust Tight, Waterproof | -20 C | 80 C | Keyed | Female Sockets, Male Pins | Standard | Chrome | 307 | |||
LEMO SWH.2S.275.CLLPV | 1 | 1 Adapter, 1 Nut | Brass | Keyed | 12 A | Shielded | Mounting Hardware, Vacuumtight | 275 | Bulkhead - Rear Side Nut | Female Sockets | Push-Pull | Silver | 275 | IP68 - Dust Tight, Waterproof | -20 C | 80 C | Keyed | Male Pins | Standard | Chrome | 1 (Coax) | |||
LEMO SWH.2S.310.CLLPV | 10 | 1 Adapter, 1 Nut | Brass | Keyed | 7 A | Shielded | Mounting Hardware, Vacuumtight | 310 | Bulkhead - Rear Side Nut | Female Sockets and Male Pins | Push-Pull | Silver | 310 | IP68 - Dust Tight, Waterproof | -20 C | 80 C | Keyed | Female Sockets, Male Pins | Standard | Chrome | ||||
LEMO SWH.2S.308.CLLPV | 8 | 1 Adapter, 1 Nut | Brass | Keyed | 9 A | Shielded | Mounting Hardware, Vacuumtight | 308 | Bulkhead - Rear Side Nut | Female Sockets and Male Pins | Push-Pull | Silver | 8 | 308 | IP68 - Dust Tight, Waterproof | -20 C | 80 C | Keyed | Female Sockets, Male Pins | Standard | Chrome | |||
LEMO SWH.2S.307.CLMPV | 7 | 1 Adapter, 1 Nut | Brass | Keyed | 9 A, 12 A | Shielded | Mounting Hardware, Vacuumtight | 307 | Bulkhead - Rear Side Nut | Female Sockets and Male Pins | Push-Pull | Silver | 7 | IP68 - Dust Tight, Waterproof | -20 C | 80 C | Keyed | Female Sockets, Male Pins | Standard | Chrome | 307 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 93.02 | |
Description
General part information
SWH.2S Series
Circular Connector Standard 4/4 Female Sockets and Male Pins/Female Sockets and Male Pins Panel Mount
