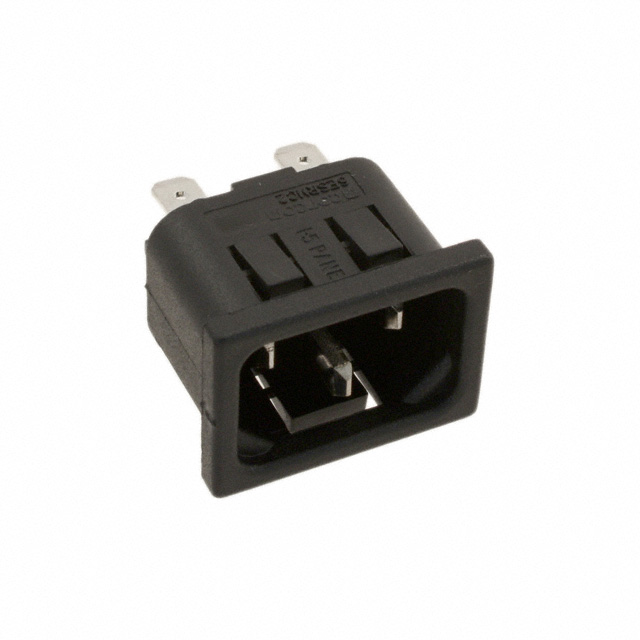

6ESRMC2

Active

TE Connectivity Raychem Cable Protection

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics for this part

Specification	6ESRMC2

Accomodates a Fuse	False
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	15 A
Filter Type	Unfiltered - Commercial
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	27.4 mm
Panel Cutout Dimensions [y]	19.8 mm
Panel Thickness [custom]	0.059 in
Panel Thickness [custom]	1.5 mm
Termination	0.187 "
Termination	4.7 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Approval Agency	Voltage Rating - Appliance Inlet	Connector Style	Accomodates a Fuse	Filter Type	Mounting Type	Panel Thickness [custom]	Panel Thickness [custom]	Termination	Termination	Termination	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Connector Type	Current Rating - Appliance Inlet	Panel Thickness	Panel Thickness
TE Connectivity Raychem Cable Protection 6ESRMC2	CSA UL VDE	250 VAC	IEC 320-C14		Unfiltered - Commercial	Panel Mount Snap-In	0.059 in	1.5 mm	0.187 "	4.7 mm	Quick Connect	19.8 mm	27.4 mm	Male Blades Receptacle	15 A
TE Connectivity Raychem Cable Protection 6ESRFC3	CSA UL VDE	250 VAC	IEC 320-C14		Unfiltered - Commercial	Panel Mount Snap-In			0.25 in	6.3 mm	Quick Connect	24.76 mm	32.26 mm	Receptacle Female Sockets	15 A	0.102 "	2.6 mm
