Description
General part information

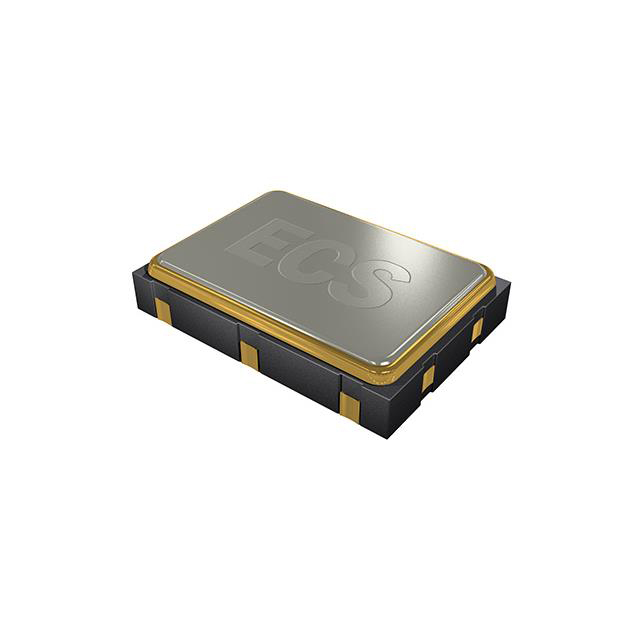

ECX-L35CN-200.000-TR
200 MHz XO (Standard) LVDS Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | ECX-L35CN-200.000-TR |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 20 mA |
| Frequency | 200 MHz |
| Frequency Stability | 25 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.051 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | LVDS |
| Package / Case | No Lead, 6-SMD |
| Package Length | 5 mm |
| Package Name | 6-SMD |
| Package Width | 3.2 mm |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.126 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
