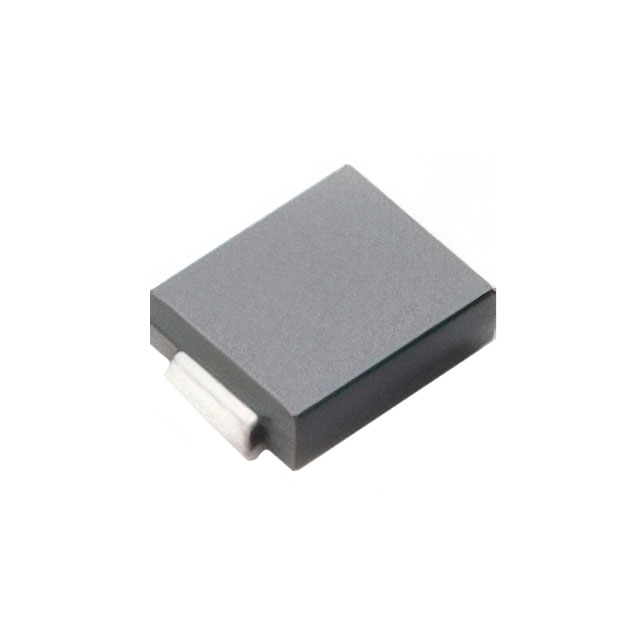

MSMCJ60A

Active

MDE Semiconductor Inc

TVS DIODE UP 60VRWM 96.8VC

Search across all available documentation for this part.

Active

MDE Semiconductor Inc

TVS DIODE UP 60VRWM 96.8VC

Technical Specifications

Parameters and characteristics for this part

Specification	MSMCJ60A

Applications	General Purpose
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SMC, DO-214AB
Power - Peak Pulse	1.5 kW
Power - Peak Pulse	1500 W
Power Line Protection	False
Supplier Device Package	DO-214AB (SMCJ)
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	66.7 V
Voltage - Clamping (Max) @ Ipp [Max]	96.8 V
Voltage - Reverse Standoff (Typ)	60 V

TVS DIODE UP 60VRWM 96.8VC

Part	Mounting Type	Type	Voltage - Reverse Standoff (Typ)	Package / Case	Applications	Voltage - Clamping (Max) @ Ipp [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Unidirectional Channels [custom]	Voltage - Breakdown (Min) [Min]	Supplier Device Package	Power - Peak Pulse	Power - Peak Pulse	Power Line Protection
MDE Semiconductor Inc MSMCJ60A	Surface Mount	Zener	60 V	DO-214AB, SMC	General Purpose	96.8 V	-55 °C	150 °C	1	66.7 V	DO-214AB (SMCJ)	1.5 kW	1500 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 2.10

General part information

96.8V Clamp 15.5A Ipp Tvs Diode Surface Mount DO-214AB (SMCJ)
