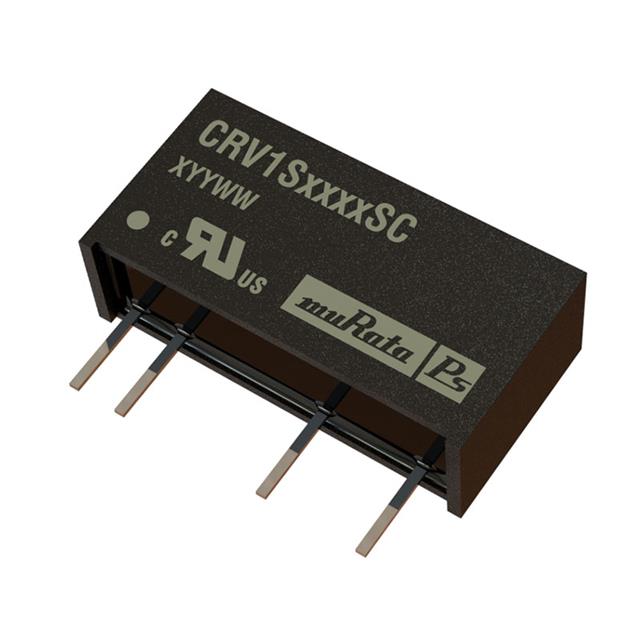

CRV1S1215SC
ActiveMurata Power Solutions Inc.
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 1 W, 1 OUTPUT, 15 V
Deep-Dive with AI
Search across all available documentation for this part.
CRV1S1215SC
ActiveMurata Power Solutions Inc.
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 1 W, 1 OUTPUT, 15 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CRV1S1215SC | CRV1S Series |
|---|---|---|
| Applications | - | ITE (Commercial) |
| Current - Output (Max) | - | 67 - 200 mA |
| Efficiency | - | 70 - 83 % |
| Mounting Type | - | Through Hole |
| null | - | |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 7-SIP Module, 4 Leads |
| Size / Dimension | - | 6 mm |
| Size / Dimension | - | 0.39 in |
| Size / Dimension | - | 10 mm |
| Size / Dimension | - | 0.24 in |
| Size / Dimension | - | 19.5 mm |
| Size / Dimension | - | 0.77 " |
| Type | - | Isolated Module |
| Voltage - Input (Max) | - | 5.5 - 13.2 V |
| Voltage - Input (Min) | - | 4.5 - 10.8 V |
| Voltage - Isolation | - | 3000 V |
| Voltage - Output 1 | - | 5 - 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
CRV1S Series
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 1 W, 1 OUTPUT, 15 V
| Part | Package / Case | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Current - Output (Max) [Max] | Voltage - Output 1 | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Isolation | Number of Outputs | Efficiency | Voltage - Input (Max) [Max] | Type | Applications | Voltage - Input (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. CRV1S1215SC | |||||||||||||||||||
Murata Power Solutions Inc. CRV1S0505SC | |||||||||||||||||||
Murata Power Solutions Inc. CRV1S1215SC | 7-SIP Module, 4 Leads | 6 mm | 0.39 in | 10 mm | 0.24 in | 19.5 mm | 0.77 " | 67 mA | 15 V | Through Hole | 85 °C | -40 °C | 3000 V | 1 | 83 % | 13.2 V | Isolated Module | ITE (Commercial) | 10.8 V |
Murata Power Solutions Inc. CRV1S1215SC | |||||||||||||||||||
Murata Power Solutions Inc. CRV1S0505SC | 7-SIP Module, 4 Leads | 6 mm | 0.39 in | 10 mm | 0.24 in | 19.5 mm | 0.77 " | 200 mA | 5 V | Through Hole | 85 °C | -40 °C | 3000 V | 1 | 70 % | 5.5 V | Isolated Module | ITE (Commercial) | 4.5 V |
Description
General part information
CRV1S Series
Isolated Module DC DC Converter 1 Output 15V 67mA 10.8V - 13.2V Input
