1987821

Active

Phoenix Contact

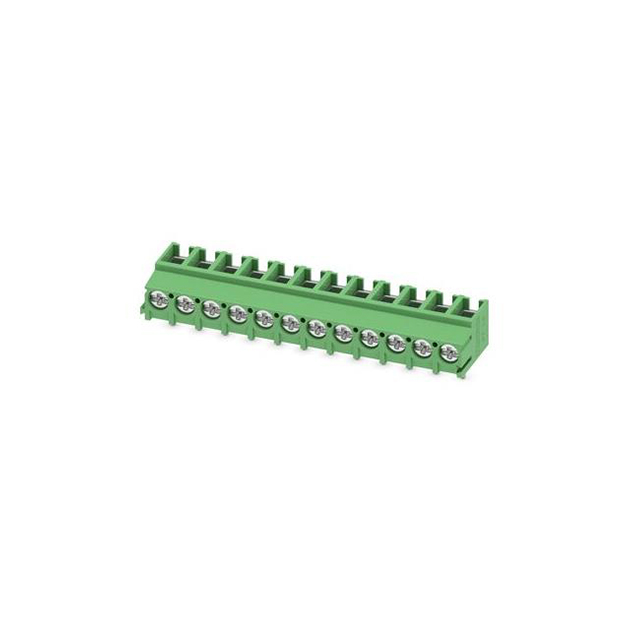

FIXED TERMINAL BLOCKS PT 2,5/12-5,0-V

Search across all available documentation for this part.

Active

Phoenix Contact

FIXED TERMINAL BLOCKS PT 2,5/12-5,0-V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1987821	PT 2,5 Series

Color	Green	Green
Current	20 A	20 A
Features	Interlocking (Side)	Interlocking (Side)
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Mating Orientation	Vertical with Board	Vertical with Board
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Pitch [x]	5 mm	5 - 7.5 mm
Pitch [x]	0.197 in	0.197 - 0.295 in
Positions Per Level	12	8 - 12
Screw Thread	M3	M3
Torque - Screw [Max]	4.4 Lb-In	4.4 Lb-In
Torque - Screw [Max]	0.5 Nm	0.5 Nm
Torque - Screw [Min]	3.9 Lb-In	3.9 Lb-In
Torque - Screw [Min]	0.45 Nm	0.45 Nm
Voltage	300 V	300 V
Wire Gauge [Max]	20 AWG	20 AWG
Wire Gauge [Min]	12 AWG	12 AWG
Wire Termination	Screw	Screw, Screw - Leaf Spring, Wire Guard

Fixed Terminal Blocks PT 2.5/ 8-7.5-V

Part	Positions Per Level	Pitch [x]	Pitch [x]	Housing Material	Number of Levels	Mating Orientation	Color	Voltage	Wire Termination	Screw Thread	Features	Torque - Screw [Min]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Max]	Current	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]
Phoenix Contact 1987821	12	5 mm	0.197 in	Polyamide (PA), Nylon	1	Vertical with Board	Green	300 V	Screw	M3	Interlocking (Side)	3.9 Lb-In	4.4 Lb-In	0.45 Nm	0.5 Nm	20 A	Through Hole	12 AWG	20 AWG
Phoenix Contact 1988011	8	7.5 mm	0.295 in	Polyamide (PA), Nylon	1	Vertical with Board	Green	300 V	Screw - Leaf Spring, Wire Guard	M3	Interlocking (Side)	3.9 Lb-In	4.4 Lb-In	0.45 Nm	0.5 Nm	20 A	Through Hole	12 AWG	20 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fixed Terminal Blocks PT 2.5/ 8-7.5-V
