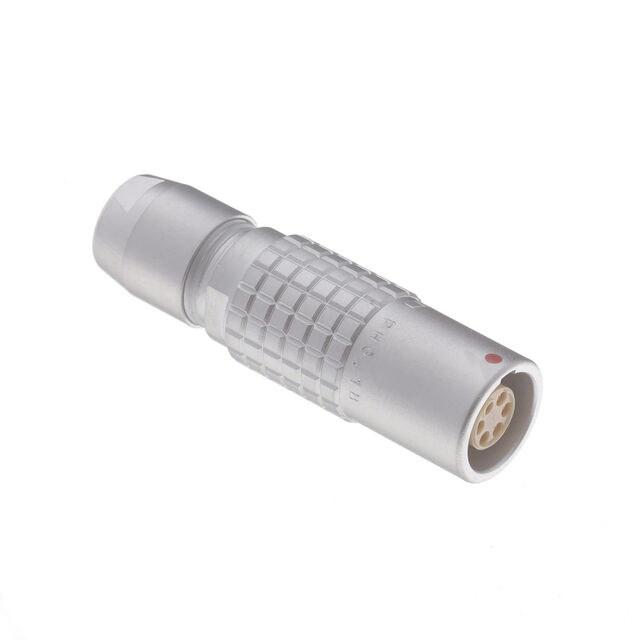

Specification	PHG.1B.306.CLLD62

Backshell Material	Brass
Cable Opening (Max)	0.244 in
Cable Opening (Min)	0.205 in
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 µin
Contact Material	Bronze
Current Rating	7 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Insert Material	Polyetheretherketone, PEEK
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature (Max)	250 °C
Operating Temperature (Min)	-55 °C
Orientation	G
Plating	Chrome
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	306
Shell Size - Insert	306
Shielding	Shielded
Termination	Solder Cup

PHG.1B Series

Circular Push Pull Connectors BEND RELIEF

...

Part	Color	Ingress Protection Description	Ingress Protection IP Rating	Shell Material	Fastening Type	Number of Positions	Primary Material	Contact Material	Shell Size - Insert	Shell Size - Insert	Operating Temperature (Max)	Operating Temperature (Min)	Orientation	Contact Finish - Mating	Termination	Current Rating	Mounting Feature	Contact Finish Thickness - Mating	Connector Type	Material Flammability Rating	Shell Finish	Mounting Type	Insert Material	Shielding
LEMO EEG.1B.304.CLV	Silver	Dust Protected	IP50	Brass	Push-Pull	4	Metal	Bronze	304	304	250 °C	-55 °C	G	Gold	Solder	6 A	Bulkhead Front Side Nut	59 µin	Female Sockets Receptacle	UL94 V-0	Chrome	Panel Mount Right Angle Through Hole	PEEK Polyetheretherketone	Shielded
LEMO EEG.1B.307.CLN	Silver	Dust Protected	IP50	Brass	Push-Pull	7	Metal	Bronze	307	307	250 °C	-55 °C	G	Gold	Solder	7 A	Bulkhead Front Side Nut	59 µin	Female Sockets Receptacle	UL94 V-0	Chrome	Panel Mount Through Hole	PEEK Polyetheretherketone	Shielded
LEMO EEG.1B.307.CYM	Silver	Dust Protected	IP50	Brass	Push-Pull	7	Metal	Bronze	307	307	250 °C	-55 °C	G	Gold	Crimp	7 A	Bulkhead Front Side Nut	59 µin	Female Sockets Receptacle	UL94 V-0	Chrome	Panel Mount	PEEK Polyetheretherketone	Shielded
LEMO EEG.1B.307.CLL	Silver	Dust Protected	IP50	Brass	Push-Pull	7	Metal	Bronze	307	307	250 °C	-55 °C	G	Gold	Solder Cup	7 A	Bulkhead Front Side Nut	59 µin	Female Sockets Receptacle	UL94 V-0	Chrome	Panel Mount	PEEK Polyetheretherketone	Shielded
LEMO EEG.1B.306.CYM	Silver	Dust Protected	IP50	Brass	Push-Pull	6	Metal	Bronze	306	306	250 °C	-55 °C	G	Gold	Crimp	7 A	Bulkhead Front Side Nut	59 µin	Female Sockets Receptacle	UL94 V-0	Chrome	Panel Mount	PEEK Polyetheretherketone	Shielded
LEMO EEG.1B.302.CYMY	Silver	Dust Protected	IP50	Brass	Push-Pull	2	Metal	Bronze	302	302	250 °C	-55 °C	G	Gold	Crimp	15 A	Bulkhead Front Side Nut	59 µin	Female Sockets Receptacle	UL94 V-0	Chrome	Panel Mount	PEEK Polyetheretherketone	Shielded
LEMO EEG.1B.306.CLL	Silver	Dust Protected	IP50	Brass	Push-Pull	6	Metal	Bronze	306	306	250 °C	-55 °C	G	Gold	Solder Cup	7 A	Bulkhead Front Side Nut	59 µin	Female Sockets Receptacle	UL94 V-0	Chrome	Panel Mount	PEEK Polyetheretherketone	Shielded
LEMO EEG.1B.310.CLN	Silver	Dust Protected	IP50	Brass	Push-Pull	10	Metal	Bronze	310	310	250 °C	-55 °C	G	Gold	Solder	2.5 A	Bulkhead Front Side Nut	59 µin	Female Sockets Receptacle	UL94 V-0	Chrome	Panel Mount Through Hole	PEEK Polyetheretherketone	Shielded
LEMO EEG.1B.306.CLN	Silver	Dust Protected	IP50	Brass	Push-Pull	6	Metal	Bronze	306	306	250 °C	-55 °C	G	Gold	Solder	7 A	Bulkhead Front Side Nut	59 µin	Female Sockets Receptacle	UL94 V-0	Chrome	Panel Mount Through Hole	PEEK Polyetheretherketone	Shielded
LEMO EEG.1B.305.CLV	Silver	Dust Protected	IP50	Brass	Push-Pull	5	Metal	Bronze	305	305	250 °C	-55 °C	G	Gold	Solder	6 A	Bulkhead Front Side Nut	59 µin	Female Sockets Receptacle	UL94 V-0	Chrome	Panel Mount Right Angle Through Hole	PEEK Polyetheretherketone	Shielded
