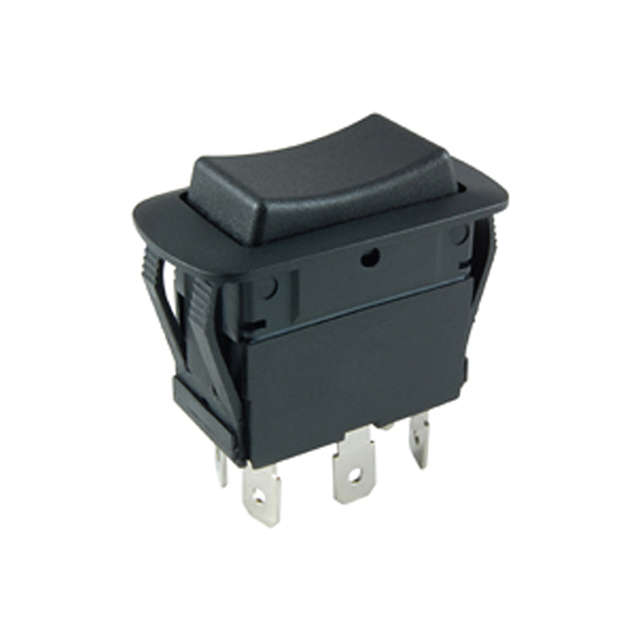

54-250W

Active

NTE Electronics, Inc

SWITCH ROCKER DPDT 21A 14V

Search across all available documentation for this part.

Active

NTE Electronics, Inc

SWITCH ROCKER DPDT 21A 14V

Technical Specifications

Parameters and characteristics for this part

Specification	54-250W

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Circuit	DPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	21 A
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	0 °C
Switch Function	Mom-Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	14 V

SWITCH ROCKER DPDT 21A 14V

Part	Termination Style	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Current Rating (Amps)	Switch Function	Mounting Type	Ingress Protection	Color - Actuator/Cap	Actuator Marking	Actuator Type
NTE Electronics, Inc 54-250W	Quick Connect - 0.250" (6.3mm)	DPDT	65 °C	0 °C	14 V	21 A	Mom-Off-Mom	Panel Mount, Snap-In	IP65 - Dust Tight, Water Resistant	Black	No Marking	Concave (Curved)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch DPDT 21A (DC) Panel Mount, Snap-In

Technical documentation and resources

No documents available
