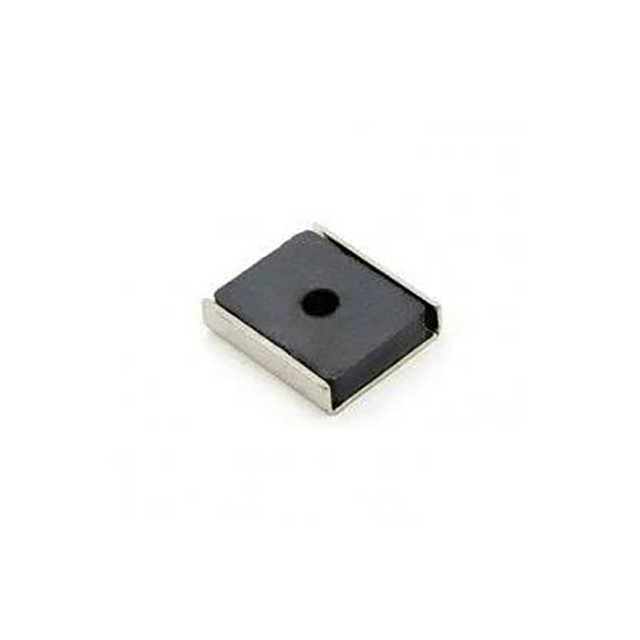

CH-10
ActiveSimple Signman
CHANNEL CERAMIC MAGNET
CH-10
ActiveSimple Signman
CHANNEL CERAMIC MAGNET
Description
General part information
CH-10
Magnet Ceramic 5 1.000" L x 0.875" W x 0.236" H (25.40mm x 22.22mm x 5.99mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | CH-10 |
|---|---|
| Gauss Strength | 1300 G |
| Magnetization | Axial |
| Material | Ceramic 5 |
| Operating Temperature | 110 °C |
| Shape | Rectangular |
| Size Height | 0.236 " |
| Size Length | 1 " |
| Size Width | 0.875 " |
