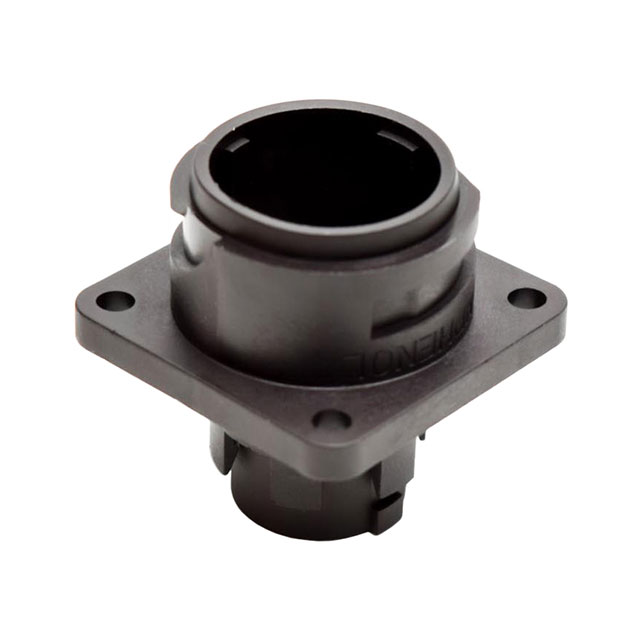

C01610C0150001

Active

Amphenol Tuchel Industrial

CONN RCPT HSNG MALE 16POS PNL MT

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN RCPT HSNG MALE 16POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	C01610C0150001

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1.5 mm, 1.6 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions [custom]	12
Number of Positions [custom]	3
Number of Positions [custom]	16
Number of Positions [custom]	PE
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Material	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	1
Shielding	Unshielded
Type	For Male Pins

CONN RCPT HSNG MALE 16POS PNL MT

Part	Contact Type	Connector Type	Contact Shape	Contact Size	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Ingress Protection	Shell Size - Insert	Note	Type	Material Flammability Rating	Fastening Type	Mounting Feature	Shielding	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Orientation
Amphenol Tuchel Industrial C01610C0150001	Crimp	Receptacle Housing	Circular	1.5 mm, 1.6 mm	Polyamide (PA66), Nylon 6/6	125 °C	-40 °C	Black	IP65 - Dust Tight, Water Resistant	1	Contacts Not Included	For Male Pins	UL94 V-0	Bayonet Lock	Flange	Unshielded	12	3	16	PE	N

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 14.76

General part information

16 (12 + 3 Power + PE) Position Circular Connector Receptacle Housing Panel Mount
