AS13985F-26-T

Obsolete

ams-OSRAM USA INC.

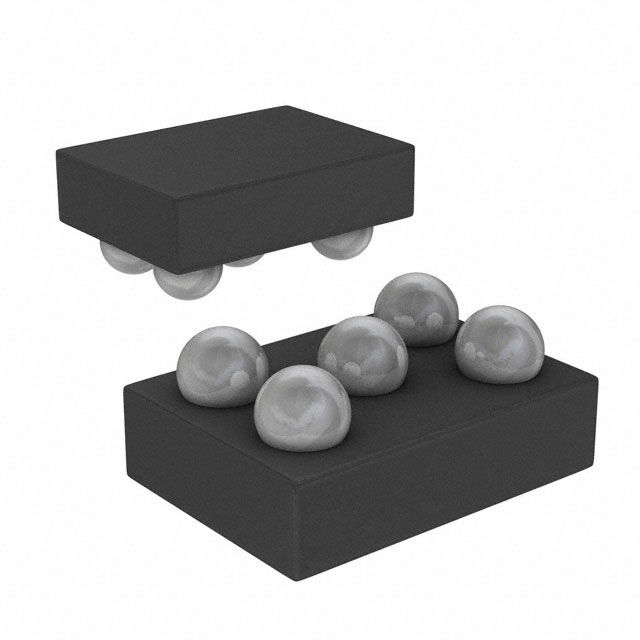

IC REG LINEAR 2.6V 150MA 5-WLCSP

Search across all available documentation for this part.

Obsolete

ams-OSRAM USA INC.

IC REG LINEAR 2.6V 150MA 5-WLCSP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AS13985F-26-T	AS13985 Series

Channels per IC	-	1 - Single
Contents	-	Board(s)
Control Features	Enable	Enable
Current - Output	150 mA	150 mA
Current - Quiescent (Iq)	130 µA	130 µA
Current - Supply (Max) [Max]	250 µA	250 µA
Mounting Type	Surface Mount	Surface Mount
Number of Regulators	1	1
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Configuration	Positive	Positive
Output Type	1.81 mOhm	1.81 mOhm
Package / Case	WLCSP, 5-UFBGA	SC-74A, SOT-753, WLCSP, 5-UFBGA
Protection Features	Over Current, Over Temperature	Over Current, Over Temperature
PSRR [Max]	55 dB	55 dB
PSRR [Min]	60 dB	60 dB
Regulator Type	-	Positive Fixed
Supplier Device Package	5-WLCSP (1.34x0.97)	SOT-23-5, 5-WLCSP (1.34x0.97)
Utilized IC / Part	-	AS13985F12
Voltage - Input	-	2.5 V
Voltage - Input	-	5.5 V
Voltage - Input (Max) [Max]	5.5 V	5.5 V
Voltage - Output	-	1.2 V
Voltage - Output (Min/Fixed)	2.6 V	2.6 - 2.7 V
Voltage Dropout (Max) [Max]	0.1 V	0.1 V

EVAL BOARD FOR AS13985F12

Part	Regulator Type	Contents	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Current - Output	Utilized IC / Part	Channels per IC	Current - Supply (Max) [Max]	Voltage - Input (Max) [Max]	Protection Features	Voltage - Output (Min/Fixed)	Number of Regulators	Control Features	Voltage Dropout (Max) [Max]	Output Type	Package / Case	Mounting Type	Output Configuration	PSRR [Min]	PSRR [Max]	Current - Quiescent (Iq)	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]
ams-OSRAM USA INC. AS13985F12_EK_ST	Positive Fixed	Board(s)	2.5 V	5.5 V	1.2 V	150 mA	AS13985F12	1 - Single
ams-OSRAM USA INC. AS13985H27-T						150 mA			250 µA	5.5 V	Over Current, Over Temperature	2.7 V	1	Enable	0.1 V	1.81 mOhm	SC-74A, SOT-753	Surface Mount	Positive	60 dB	55 dB	130 µA	SOT-23-5	125 °C	-40 °C
ams-OSRAM USA INC. AS13985F-26-T						150 mA			250 µA	5.5 V	Over Current, Over Temperature	2.6 V	1	Enable	0.1 V	1.81 mOhm	5-UFBGA, WLCSP	Surface Mount	Positive	60 dB	55 dB	130 µA	5-WLCSP (1.34x0.97)	125 °C	-40 °C
ams-OSRAM USA INC. AS13985F27-T						150 mA			250 µA	5.5 V	Over Current, Over Temperature	2.7 V	1	Enable	0.1 V	1.81 mOhm	5-UFBGA, WLCSP	Surface Mount	Positive	60 dB	55 dB	130 µA	5-WLCSP (1.34x0.97)	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 150mA 5-WLCSP (1.34x0.97)
