ERN.0S.302.CLL
ActiveLEMO

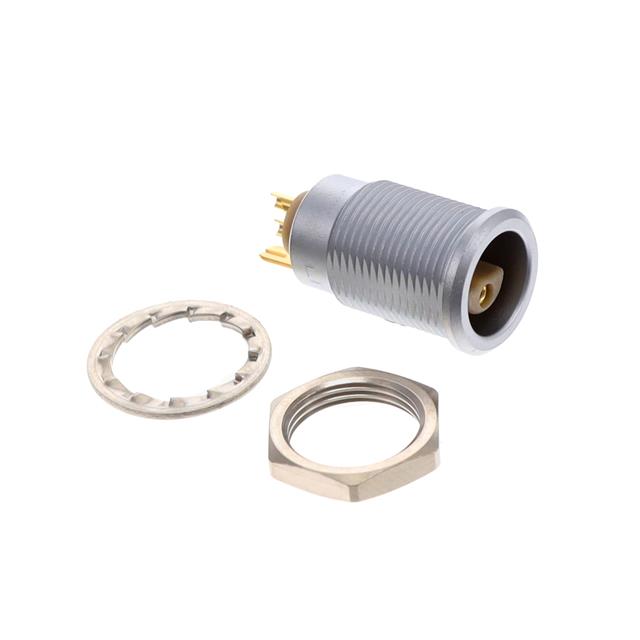

CONN CIRC RCPT 2P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ERN.0S.302.CLL
ActiveLEMO
CONN CIRC RCPT 2P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ERN.0S.302.CLL | ERN.0S Series |
|---|---|---|
| Body Finish | - | Chrome |
| Body Material | - | Brass |
| Cable Group | - | 178, RG-174, 174A, 188A, 196A, 316B, 178B, RG-122, 174 |
| Center Contact Material | - | Beryllium Copper |
| Center Contact Plating | - | Gold |
| Color | Silver | Silver, Black |
| Connector Style | - | Triaxial, Coaxial |
| Connector Type | Female Sockets, Male Pins, Receptacle | Female Sockets, Male Pins, Receptacle, Female Socket |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Bronze, Brass | Bronze, Brass |
| Contact Termination | - | Solder Cup |
| Current Rating (Amps) | 10 A | 7 - 10 A |
| Dielectric Material | - | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Ground | Ground |
| Housing Color | - | Silver |
| Impedance | - | 50 Ohms |
| Includes | - | 1 Nut, 1 Connector, 1 Lockwasher |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mating Cycles | - | 1000 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Number of Ports | - | 1 |
| Number of Positions | 2 | 2 |
| Operating Temperature [Max] | 250 °C | 115 - 250 °C |
| Operating Temperature [Min] | -55 °C | -55 - -50 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal, Plastic |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass, Polyoxymethylene (POM), Acetal |
| Shell Size - Insert | 302 | 302 - 303 |
| Shield Termination | - | Solder |
| Shielding | Shielded | Shielded |
ERN.0S Series
CONN CIRC RCPT 2P GOLD SLDR CUP
| Part | Fastening Type | Orientation | Contact Finish - Mating | Material Flammability Rating | Current Rating (Amps) | Shell Size - Insert | Shell Material | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Features | Shell Finish | Shielding | Connector Type | Mounting Feature | Insert Material | Primary Material | Ingress Protection | Color | Contact Material | Mating Cycles | Center Contact Material | Body Finish | Cable Group | Connector Style | Contact Termination | Center Contact Plating | Body Material | Impedance | Dielectric Material | Housing Color | Number of Ports | Includes | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO ERN.0S.302.CLL | Push-Pull | Keyed | Gold | UL94 V-0 | 10 A | 302 | Brass | 2 | -55 °C | 250 °C | Ground | Chrome | Shielded | Female Sockets, Male Pins, Receptacle | Bulkhead - Rear Side Nut | Polyetheretherketone (PEEK) | Metal | IP50 | Silver | Brass, Bronze | ||||||||||||||
LEMO ERN.0S.650.CTL | Push-Pull | -55 °C | 250 °C | Female Socket, Receptacle | Bulkhead - Rear Side Nut | IP50 | 1000 | Beryllium Copper | Chrome | 178, RG-174 | Triaxial | Solder Cup | Gold | Brass | 50 Ohms | Polytetrafluoroethylene (PTFE) | Silver | 1 | 1 Connector, 1 Lockwasher, 1 Nut | Solder | ||||||||||||||
LEMO ERN.0S.302.BLL | Push-Pull | Keyed | Gold | UL94 V-0 | 10 A | 302 | Acetal, Polyoxymethylene (POM) | 2 | -50 °C | 115 °C | Ground | Shielded | Female Sockets, Male Pins, Receptacle | Bulkhead - Rear Side Nut | Polyetheretherketone (PEEK) | Plastic | IP50 | Black | Brass, Bronze | |||||||||||||||
LEMO ERN.0S.303.CLL | Push-Pull | Keyed | Gold | UL94 V-0 | 7 A | 303 | Brass | -55 °C | 250 °C | Ground | Chrome | Shielded | Female Sockets, Male Pins, Receptacle | Bulkhead - Rear Side Nut | Polyetheretherketone (PEEK) | Metal | IP50 | Silver | Brass, Bronze | |||||||||||||||
LEMO ERN.0S.250.CTL | Push-Pull | -55 °C | 250 °C | Female Socket, Receptacle | Bulkhead - Rear Side Nut | IP50 | 1000 | Beryllium Copper | Chrome | 174, 174A, 178B, 188A, 196A, 316B, RG-122 | Coaxial | Solder Cup | Gold | Brass | 50 Ohms | Polytetrafluoroethylene (PTFE) | Silver | 1 | 1 Connector, 1 Lockwasher, 1 Nut | Solder |
