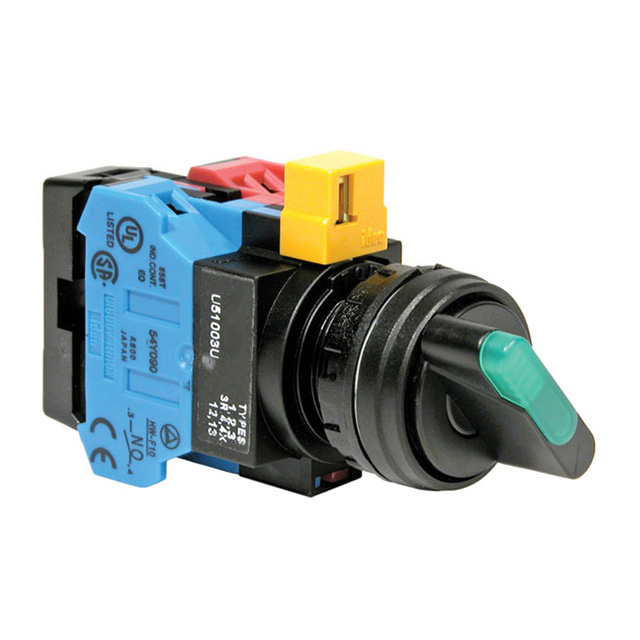

HW1F-2F10QD-G-120V

Active

IDEC Corporation

22MM SELECTOR SWITCH LIGHTED ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

IDEC Corporation

22MM SELECTOR SWITCH LIGHTED ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	HW1F-2F10QD-G-120V

Approval Agency	TUV, CSA, CCC, CE, UL
Circuit	SPST-NO
Current Rating (Amps)	8 A, 10 A
Illumination	Illuminated
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	120 VAC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	500000 Cycles
Number of Positions	2
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	Off-On
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	110 V
Voltage Rating - DC	24 V

22MM SELECTOR SWITCH LIGHTED ROHS COMPLIANT: YES

Part	Illumination Voltage (Nominal)	Number of Positions	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Illumination	Illumination Type, Color	Switch Function	Voltage Rating - AC	Approval Agency	Circuit	Type	Panel Cutout Dimensions [diameter]	Mechanical Life	Termination Style	Ingress Protection
IDEC Corporation HW1F-2F10QD-G-120V	120 VAC	2	24 V	50 °C	-25 °C	8 A, 10 A	Illuminated	Green, LED	Off-On	110 V	CCC, CE, CSA, TUV, UL	SPST-NO	Standard	22.3 mm	500000 Cycles	Screw Terminal	IP65 - Dust Tight, Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Selector Switch 2 Position SPST-NO 10A (AC), 8A (DC) 110 V Panel Mount
