MAL205155333E3
ActiveVishay Dale

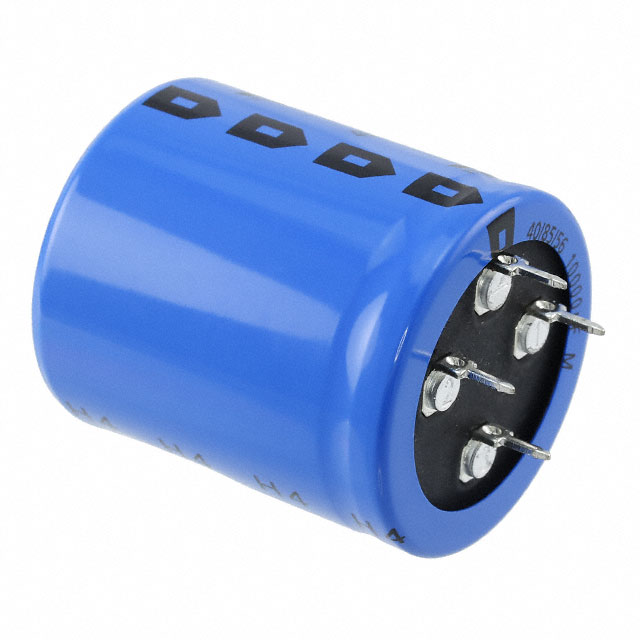

CAP ALUM 33000UF 20% 16V RADIAL
MAL205155333E3
ActiveVishay Dale
CAP ALUM 33000UF 20% 16V RADIAL
Description
General part information
MAL205155333E3
33000 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - 4 Lead 23mOhm @ 100Hz 12000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL205155333E3 |
|---|---|
| Applications | General Purpose |
| Capacitance | 33000 µF |
| ESR (Equivalent Series Resistance) | 23 mOhm |
| Height - Seated (Max) | 2.165 in |
| Impedance | 21 mOhms |
| Lead Spacing | 0.689 in |
| Lifetime | 12000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 4 Lead |
| Package Name | Can, Radial |
| Polarization | Polar |
| Ripple Current | 6.7 A |
| Size / Dimension Diameter | 1.378 in |
| Tolerance | 20 % |
| Voltage - Rated | 16 V |
