1408346-1

Active

TE Connectivity AMP Connectors

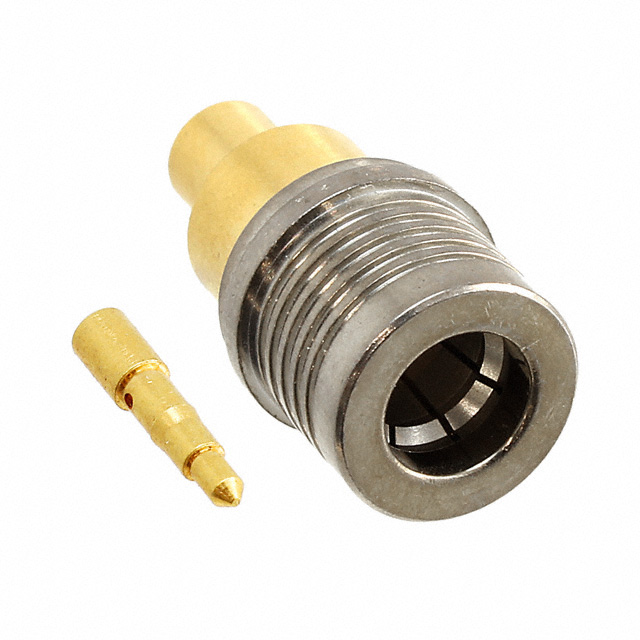

CONN QMA PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QMA PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1408346-1

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.25 dB
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	335 V

CONN QMA PLUG STR 50 OHM SOLDER

Part	Insertion Loss	Body Material	Center Contact Plating	Body Finish	Fastening Type	Dielectric Material	Shield Termination	Contact Termination	Impedance	Mounting Type	Connector Type	Center Contact Material	Voltage Rating	Number of Ports	Housing Color	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity AMP Connectors 1408346-1	0.25 dB	Brass	Gold	Gold	Snap-On	Polytetrafluoroethylene (PTFE)	Solder	Solder	50 Ohms	Free Hanging (In-Line)	Male Pin, Plug	Brass	335 V	1	Gold	6000 MHz	-40 °C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

QMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
