MVU14-8FK

Active

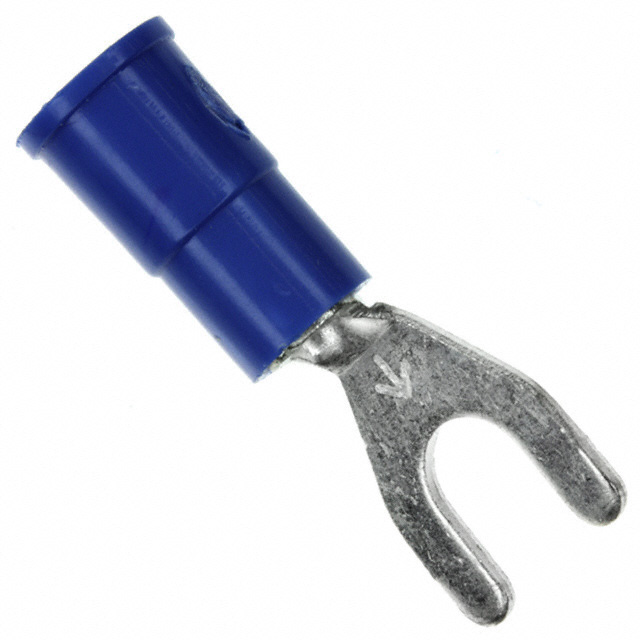

CONN SPADE TERM 14-16AWG #8 BLU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MVU14-8FK

Active

CONN SPADE TERM 14-16AWG #8 BLU

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.41
		10	$ 0.36
		25	$ 0.33
		50	$ 0.31
		100	$ 0.30
		250	$ 0.27
		500	$ 0.26
		1000	$ 0.23

Description

General part information

MVU14 Series

Blue 8 Stud Spade Terminal Connector Crimp 14-16 AWG

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MVU14-8FK	MVU14 Series

Color	Blue	Blue
Contact Finish	Tin	Tin
Contact Material	ETP, Copper	ETP, Copper, Brass
Features	Butted Seam	Butted Seam
Gender	-	Female, Male
Insulation	Insulated	Insulated, Non-Mating End Insulated, Fully Insulated
Insulation Diameter	-	3.68 - 4.57 mm
Insulation Diameter	-	0.18 in
Insulation Diameter	-	0.145 "
Length - Overall	0.9 in	0.9 in
Length - Overall	22.86 mm	21.08 - 23.62 mm
Length - Overall	-	18.54 - 22.35 mm
Length - Overall	-	0.73 - 0.93 in
Length - Ring Center to Termination	0.29 in	0.29 in
Length - Ring Center to Termination	7.37 mm	7.37 mm
Length - Ring Center to Termination	-	0.25 in
Length - Ring Center to Termination	-	6.35 mm
Length - Termination [x]	0.45 in	0.45 in
Length - Termination [x]	11.43 mm	11.43 mm
Material - Insulation	Vinyl	Vinyl
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Wire Entries	-	2
Stud/Tab Size	8 Stud	8 Stud
Stud/Tab Size	-	0.25 - 10 Stud
Tab Thickness	-	0.02 - 0.032 in
Tab Thickness	-	0.51 - 0.81 mm
Tab Width	-	2.79 - 6.35 mm
Tab Width	-	0.11 - 0.25 in
Terminal Type	Standard	Circular, Stacked, Standard, Snap, Spring, Pin (Plug), Male, Butt Splice, Inline, Individual Openings
Termination	Crimp	Crimp
Thickness	-	0.03 in
Thickness	-	0.76 mm
Width - Outer Edges	8.64 mm	7.87 - 8.64 mm
Width - Outer Edges	0.34 in	0.34 in
Width - Outer Edges	-	0.25 - 0.47 in
Width - Outer Edges	-	6.35 - 11.94 mm

MVU14 Series

CONN RING CIRC 14-16AWG 100PC

Part	Width - Outer Edges [y]	Width - Outer Edges [y]	Contact Finish	Material - Insulation	Contact Material	Terminal Type	Color	Thickness	Thickness	Stud/Tab Size	Insulation	Termination	Mounting Type	Length - Overall [x]	Length - Overall [x]	Features	Tab Width	Tab Width	Gender	Tab Thickness	Tab Thickness	Insulation Diameter	Insulation Diameter	Insulation Diameter [diameter]	Length - Termination [x]	Length - Termination [x]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Stud/Tab Size	Length - Overall	Width - Outer Edges
3M MVU14-14R/SX-BOTTLE	0.47 in	11.94 mm	Tin	Vinyl	Copper, ETP	Circular	Blue	0.03 in	0.76 mm	0.25 Stud	Insulated	Crimp	Free Hanging (In-Line)
3M MVU14-250DMFX-A-BOTTLE			Tin		Brass	Stacked	Blue				Non-Mating End Insulated	Crimp	Free Hanging (In-Line)	22.1 mm	0.87 in	Butted Seam	6.35 mm	0.25 in	Female, Male	0.032 in	0.81 mm
3M MVU14-110DFK-A						Standard	Blue				Insulated	Crimp	Free Hanging (In-Line)	18.54 mm	0.73 in	Butted Seam	2.79 mm	0.11 "	Female	0.02 "	0.51 mm	4.57 mm	0.18 in
3M MVU14-250DFK			Tin		Brass	Standard	Blue				Non-Mating End Insulated	Crimp	Free Hanging (In-Line)	22.1 mm	0.87 in	Butted Seam	6.35 mm	0.25 in	Female	0.032 in	0.81 mm	3.68 mm		0.145 "
3M MVU14-10FLK	0.32 in	8.13 mm	Tin	Vinyl	Copper, ETP	Snap, Spring	Blue			10 Stud	Insulated	Crimp	Free Hanging (In-Line)	22.35 mm	0.88 in	Butted Seam									0.45 in	11.43 mm	0.25 in	6.35 mm
3M MVU14-250DFX			Tin		Brass	Standard	Blue				Non-Mating End Insulated	Crimp	Free Hanging (In-Line)	22.1 mm	0.87 in	Butted Seam	6.35 mm	0.25 in	Female	0.032 in	0.81 mm	3.68 mm		0.145 "
3M MVU14-8FBX-BOTTLE			Tin	Vinyl	Copper, ETP	Standard	Blue				Insulated	Crimp	Free Hanging (In-Line)	21.59 mm	0.85 "	Butted Seam									0.45 in	11.43 mm	0.25 in	6.35 mm	8 Stud
3M MVU14-6FBK			Tin	Vinyl	Copper, ETP	Standard	Blue			6 Stud	Insulated	Crimp	Free Hanging (In-Line)	21.59 mm	0.85 "	Butted Seam									0.45 in	11.43 mm	0.25 in	6.35 mm
3M MVU14-180DMK-A			Tin	Vinyl	Brass	Male, Pin (Plug)	Blue				Non-Mating End Insulated	Crimp			0.83 in	Butted Seam														21.08 mm
3M MVU14-8R/LK	0.31 in		Tin	Vinyl	Copper, ETP	Circular	Blue	0.03 in	0.76 mm		Insulated	Crimp	Free Hanging (In-Line)		0.93 in														8 Stud	23.62 mm	7.87 mm
