3-1241961-1
ActiveTE Connectivity AMP Connectors

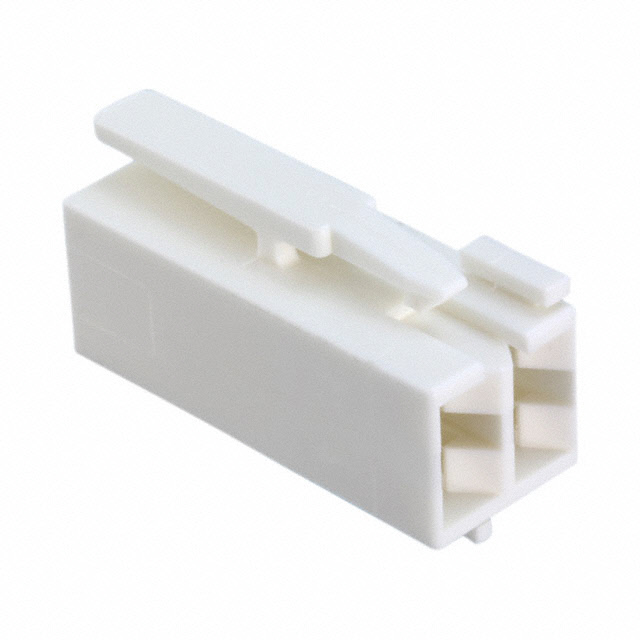

CONN RCPT HSG 2POS 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3-1241961-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 2POS 5.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3-1241961-1 | 1241961 Series |
|---|---|---|
| Color | Natural | Natural |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Latch Lock | Latch Lock |
| Insulation Material | Polyamide (PA6), Nylon 6 | Polyamide (PA6), Nylon 6, Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 2 | 2 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 3200 | $ 0.30 | |
1241961 Series
CONN RCPT HSG 2POS 5.00MM
| Part | Contact Termination | Color | Connector Type | Mounting Type | Note | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Number of Positions | Number of Rows | Fastening Type | Pitch [x] | Pitch [x] | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1241961-3 | Crimp | Natural | Receptacle | Free Hanging (In-Line) | Contacts Not Included | -40 °C | 105 ░C | Female Socket | 2 | 1 | Latch Lock | 5 mm | 0.197 in | Polyamide (PA6), Nylon 6 |
TE Connectivity AMP Connectors 8-1241961-8 | Crimp | Natural | Receptacle | Free Hanging (In-Line) | Contacts Not Included | -40 °C | 105 ░C | Female Socket | 1 | Latch Lock | 5 mm | 0.197 in | Polyamide (PA66), Nylon 6/6 | |
TE Connectivity AMP Connectors 3-1241961-1 | Crimp | Natural | Receptacle | Free Hanging (In-Line) | Contacts Not Included | -40 °C | 105 ░C | Female Socket | 2 | 1 | Latch Lock | 5 mm | 0.197 in | Polyamide (PA6), Nylon 6 |
TE Connectivity AMP Connectors 5-1241961-2 | Crimp | Natural | Receptacle | Free Hanging (In-Line) | Contacts Not Included | Female Socket | 2 | 1 | Latch Lock | 5 mm | 0.197 in | Polyamide (PA6), Nylon 6 | ||
TE Connectivity AMP Connectors 3-1241961-2 | Crimp | Natural | Receptacle | Free Hanging (In-Line) | Contacts Not Included | -40 °C | 105 ░C | Female Socket | 2 | 1 | Latch Lock | 5 mm | 0.197 in | Polyamide (PA6), Nylon 6 |
TE Connectivity AMP Connectors 7-1241961-2 | Crimp | Natural | Receptacle | Free Hanging (In-Line) | Contacts Not Included | -40 °C | 105 ░C | Female Socket | 2 | 1 | Latch Lock | 5 mm | 0.197 in | Polyamide (PA6), Nylon 6 |
TE Connectivity AMP Connectors 2-1241961-8 | Crimp | Natural | Receptacle | Free Hanging (In-Line) | Contacts Not Included | -40 °C | 105 ░C | Female Socket | 1 | Latch Lock | 5 mm | 0.197 in | Polyamide (PA66), Nylon 6/6 | |
TE Connectivity AMP Connectors 1241961-6 | Crimp | Natural | Receptacle | Free Hanging (In-Line) | Contacts Not Included | -40 °C | 105 ░C | Female Socket | 1 | Latch Lock | 5 mm | 0.197 in | Polyamide (PA6), Nylon 6 | |
TE Connectivity AMP Connectors 8-1241961-2 | Crimp | Natural | Receptacle | Free Hanging (In-Line) | Contacts Not Included | -40 °C | 105 ░C | Female Socket | 2 | 1 | Latch Lock | 5 mm | 0.197 in | Polyamide (PA6), Nylon 6 |
TE Connectivity AMP Connectors 4-1241961-7 | Crimp | Natural | Receptacle | Free Hanging (In-Line) | Contacts Not Included | -40 °C | 105 ░C | Female Socket | 1 | Latch Lock | 5 mm | 0.197 in | Polyamide (PA6), Nylon 6 |
Description
General part information
1241961 Series
2 Rectangular Connectors - Housings Receptacle Natural 0.197" (5.00mm)
