379-040-542-208
ActiveEDAC Inc.

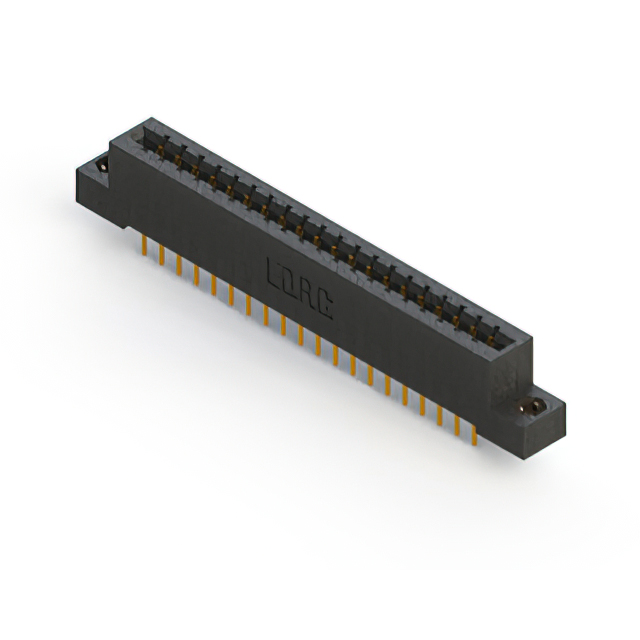

CONN EDGE DUAL FMALE 40POS 0.150
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
379-040-542-208
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 40POS 0.150
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 379-040-542-208 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 40 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.15 in |
| Pitch [x] | 3.81 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
379-040 Series
| Part | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Number of Positions | Gender | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination Rows | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Termination | Contact Type | Contact Material | Material - Insulation | Flange Feature | Number of Rows | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Features | Color | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | 40 | Female | Non Specified - Dual Edge | -40 °C | 105 ░C | 2 | 20 | 20 | 20 | Solder | Cantilever | Copper Alloy | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.15 in | 3.81 mm | Card Extender | Black | ||
EDAC Inc. | Gold | 10 Áin | 0.25 Ám | Through Hole | 40 | Female | Non Specified - Dual Edge | -40 °C | 105 ░C | 2 | 20 | 20 | 20 | Wire Wrap | Cantilever | Copper Alloy | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.15 in | 3.81 mm | Black | |||
EDAC Inc. | Gold | 10 Áin | 0.25 Ám | Through Hole | 40 | Female | Non Specified - Dual Edge | -40 °C | 105 ░C | 2 | 20 | 20 | 20 | Solder | Cantilever | Copper Alloy | Polyester Thermoplastic | Flush Mount Top Opening Unthreaded | 2 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.15 in | 3.81 mm | Black | 3.25 mm | 0.128 " | |
EDAC Inc. | Gold | 10 Áin | 0.25 Ám | Through Hole | 40 | Female | Non Specified - Dual Edge | -40 °C | 105 ░C | 2 | 20 | 20 | 20 | Wire Wrap | Cantilever | Copper Alloy | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.15 in | 3.81 mm | Black | |||
EDAC Inc. | Gold | 10 Áin | 0.25 Ám | Through Hole | 40 | Female | Non Specified - Dual Edge | -40 °C | 105 ░C | 2 | 20 | 20 | 20 | Solder | Cantilever | Copper Alloy | Polyester Thermoplastic | Flush Mount Top Opening Unthreaded | 2 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.15 in | 3.81 mm | Black | 3.96 mm | 0.156 in | |
EDAC Inc. | Gold | 10 Áin | 0.25 Ám | Through Hole | 40 | Female | Non Specified - Dual Edge | -40 °C | 105 ░C | 2 | 20 | 20 | 20 | Solder | Cantilever | Copper Alloy | Polyester Thermoplastic | Floating Bobbin Flush Mount | 2 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.15 in | 3.81 mm | Black | 2.95 mm | 0.116 in | |
EDAC Inc. | Gold | 10 Áin | 0.25 Ám | Through Hole | 40 | Female | Non Specified - Dual Edge | -40 °C | 105 ░C | 2 | 20 | 20 | 20 | Wire Wrap | Cantilever | Copper Alloy | Polyester Thermoplastic | Flush Mount M3 Threaded Insert Top Opening | 2 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.15 in | 3.81 mm | Black | |||
EDAC Inc. | Gold | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | 40 | Female | Non Specified - Dual Edge | -40 °C | 105 ░C | 2 | 20 | 20 | 20 | Solder | Cantilever | Copper Alloy | Polyester Thermoplastic | Flush Mount M3 Threaded Insert Top Opening | 2 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.15 in | 3.81 mm | Card Extender | Black | ||
EDAC Inc. | Gold | 10 Áin | 0.25 Ám | Through Hole | 40 | Female | Non Specified - Dual Edge | -40 °C | 105 ░C | 2 | 20 | 20 | 20 | Wire Wrap | Cantilever | Copper Alloy | Polyester Thermoplastic | 2 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.15 in | 3.81 mm | Black | ||||
EDAC Inc. | Gold | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | 40 | Female | Non Specified - Dual Edge | -40 °C | 105 ░C | 2 | 20 | 20 | 20 | Solder | Cantilever | Copper Alloy | Polyester Thermoplastic | Flush Mount Top Opening Unthreaded | 2 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.15 in | 3.81 mm | Card Extender | Black | 3.96 mm | 0.156 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
379-040 Series
40 Position Female Connector Non Specified - Dual Edge Gold 0.150" (3.81mm) Black
