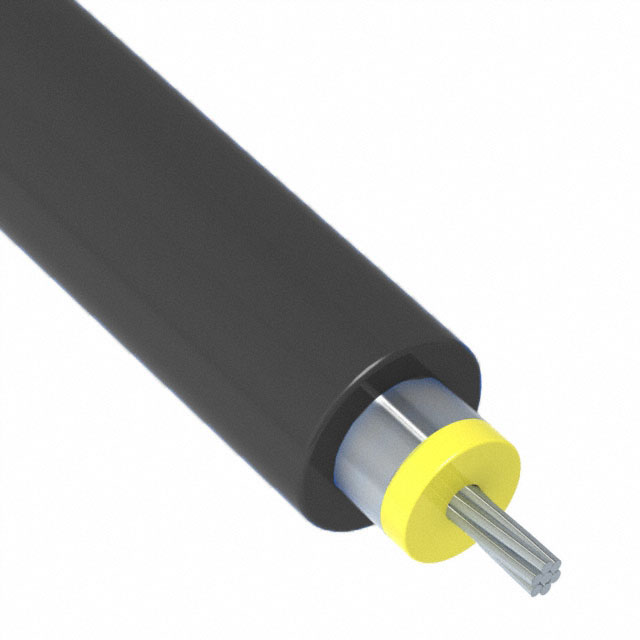

1000650088

Obsolete

Molex - Temp Flex

CABLE MICRO COAXIAL 40AWG 1'

Deep-Dive with AI

Search across all available documentation for this part.

1000650088

Obsolete

Molex - Temp Flex

CABLE MICRO COAXIAL 40AWG 1'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 23.54
		1	$ 12.47
		3	$ 11.50
		3	$ 21.74
		5	$ 11.07
		5	$ 21.02
		7	$ 10.83
		7	$ 20.54
		10	$ 19.94
		10	$ 10.59
		25	$ 9.93
		25	$ 18.74
		50	$ 17.78
		50	$ 9.44
		100	$ 16.94
		100	$ 8.96

Description

General part information

100065 Series

Micro Coaxial Cable 40 AWG 1.0' (0.30m)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1000650088	100065 Series

	-	-
Cable Type	Micro Coaxial	Micro Coaxial
Conductor Material	Copper, Silver Coated	Copper, Silver Coated, Copper Alloy, Silver Coated
Conductor Strand	Solid	Solid
Conductor Strand	-	7
Conductor Strand	-	58 AWG
Dielectric Diameter	-	0.004 "
Dielectric Diameter	-	0.1 mm
Dielectric Diameter [diameter]	0.008 in	0.005 - 0.008 in
Dielectric Diameter [diameter]	0.203 mm	0.13 - 0.203 mm
Dielectric Material	Perfluoroalkoxy (PFA)	Perfluoroalkoxy (PFA)
Impedance	-	50 Ohms
Jacket (Insulation) Diameter [diameter]	0.014 in	0.008 - 0.014 in
Jacket (Insulation) Diameter [diameter]	0.36 mm	0.2 - 0.36 mm
Jacket (Insulation) Material	Perfluoroalkoxy (PFA)	Perfluoroalkoxy (PFA)
Jacket Color	Black	Blue, Black
Length	15.24 m	15.24 - 60.96 m
Length	50 ft	50 - 200 '
Length [x]	1 ft, 10 ft, 100 ft	1 - 100 ft
Length [x]	300 mm, 3.05 m, 30.48 m	3.05 - 300 m
Shield Material	Copper, Tinned	Copper, Silver Coated, Copper, Tinned
Shield Type	Spiral	Spiral, Braid
Wire Gauge	40 AWG	40 - 44 AWG

100065 Series

CABLE MICRO COAXIAL 42AWG 10'

Part	Wire Gauge	Shield Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Length [x]	Length [x]	Jacket (Insulation) Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Shield Type	Dielectric Material	Impedance	Conductor Material	Length	Length	Conductor Strand	Dielectric Diameter	Dielectric Diameter
Molex - Temp Flex 100065-0023	44 AWG	Copper, Silver Coated	0.33 mm	0.013 in	Micro Coaxial	3.05 m	10 ft	Perfluoroalkoxy (PFA)	0.008 in	0.203 mm	7	58 AWG	Blue	Spiral	Perfluoroalkoxy (PFA)	50 Ohms	Copper, Silver Coated
Molex - Temp Flex 1000650023	44 AWG	Copper, Silver Coated	0.33 mm	0.013 in	Micro Coaxial	30.48 m, 300 mm	1 ft, 100 ft	Perfluoroalkoxy (PFA)	0.008 in	0.203 mm	7	58 AWG	Blue	Spiral	Perfluoroalkoxy (PFA)	50 Ohms	Copper, Silver Coated	200 '	60.96 m
Molex - Temp Flex 1000650088	40 AWG	Copper, Tinned	0.36 mm	0.014 in	Micro Coaxial	3.05 m, 30.48 m, 300 mm	1 ft, 10 ft, 100 ft	Perfluoroalkoxy (PFA)	0.008 in	0.203 mm			Black	Spiral	Perfluoroalkoxy (PFA)		Copper, Silver Coated	50 ft	15.24 m	Solid
Molex - Temp Flex 1000650095
Molex - Temp Flex 1000650074	44 AWG	Copper, Tinned	0.23 mm	0.009 in	Micro Coaxial	30.48 m	100 ft	Perfluoroalkoxy (PFA)	0.005 in	0.13 mm			Black	Spiral	Perfluoroalkoxy (PFA)		Copper, Silver Coated			Solid
Molex - Temp Flex 1000650092
Molex - Temp Flex 1000650089	44 AWG	Copper, Tinned	0.2 mm	0.008 in	Micro Coaxial			Perfluoroalkoxy (PFA)					Black	Braid	Perfluoroalkoxy (PFA)		Copper Alloy, Silver Coated				0.004 "	0.1 mm
Molex - Temp Flex 1000650073	44 AWG	Copper, Tinned	0.25 mm	0.01 in	Micro Coaxial	3.05 m	10 ft	Perfluoroalkoxy (PFA)	0.006 "	0.15 mm			Black	Spiral	Perfluoroalkoxy (PFA)		Copper, Silver Coated			Solid
