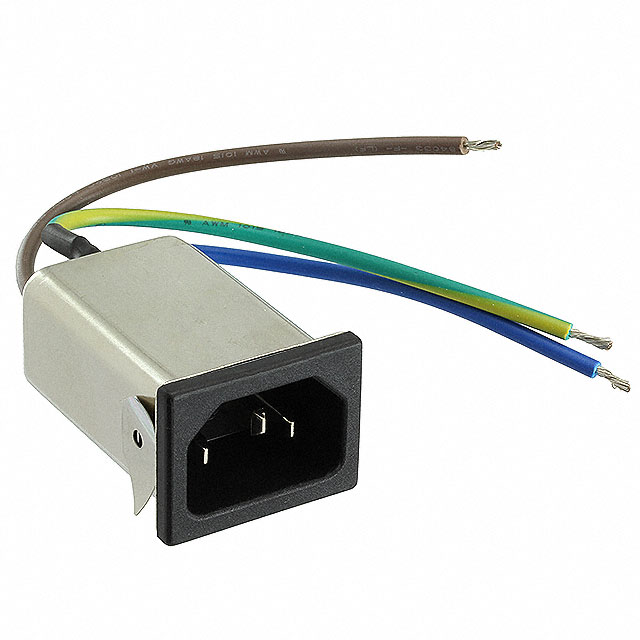

03GENW3QM-R(H)
ActiveDelta Electronics
PWR ENT RCPT IEC320-C14 PNL WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
03GENW3QM-R(H)
ActiveDelta Electronics
PWR ENT RCPT IEC320-C14 PNL WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 03GENW3QM-R(H) | 03GENW Series |
|---|---|---|
| Accomodates a Fuse | False | False |
| Approval Agency | UL, VDE, CSA | UL, VDE, CSA |
| Connector Style | IEC 320-C14 | IEC 320-C14 |
| Connector Type | Male Blades, Receptacle | Male Blades, Receptacle |
| Current Rating - Appliance Inlet | 3 A | 3 A |
| Current Rating - Filter | 3 A | 3 A |
| Features | Mounting Clip, Bleed Resistor | Mounting Clip, Bleed Resistor |
| Filter Type | Filtered (EMI, RFI) - Commercial, Medical | Filtered (EMI, RFI) - Commercial, Medical |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 29.5 mm | 29.5 mm |
| Panel Cutout Dimensions [y] | 21.5 mm | 21.5 mm |
| Termination | Wire Leads | Wire Leads |
| Voltage Rating - Appliance Inlet [Max] | 250 VAC | 250 VAC |
| Voltage Rating - Appliance Inlet [Min] | 115 VAC | 115 VAC |
03GENW Series
PWR ENT RCPT IEC320-C14 PNL WIRE
| Part | Filter Type | Voltage Rating - Appliance Inlet [Min] | Voltage Rating - Appliance Inlet [Max] | Features | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Accomodates a Fuse | Current Rating - Appliance Inlet | Connector Style | Current Rating - Filter | Mounting Type | Approval Agency | Termination | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics 03GENW3EM-R(H) | Filtered (EMI, RFI) - Commercial, Medical | 115 VAC | 250 VAC | Bleed Resistor, Mounting Clip | 29.5 mm | 21.5 mm | 3 A | IEC 320-C14 | 3 A | Panel Mount, Snap-In | CSA, UL, VDE | Wire Leads | Male Blades, Receptacle | |
Delta Electronics 03GENW3QM-R(H) | Filtered (EMI, RFI) - Commercial, Medical | 115 VAC | 250 VAC | Bleed Resistor, Mounting Clip | 29.5 mm | 21.5 mm | 3 A | IEC 320-C14 | 3 A | Panel Mount, Snap-In | CSA, UL, VDE | Wire Leads | Male Blades, Receptacle |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
03GENW Series
Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In
