RPC-M8-3MS-10.0-M8-3FS-PUR-T4052123003-007

T4052123003-007

Active
TE Connectivity AMP Connectors

RPC-M8-3MS-10.0-M8-3FS-PUR

Find alt
RPC-M8-3MS-10.0-M8-3FS-PUR-T4052123003-007

T4052123003-007

Active
TE Connectivity AMP Connectors

RPC-M8-3MS-10.0-M8-3FS-PUR

Find alt

Description

General part information

T4052123003-007

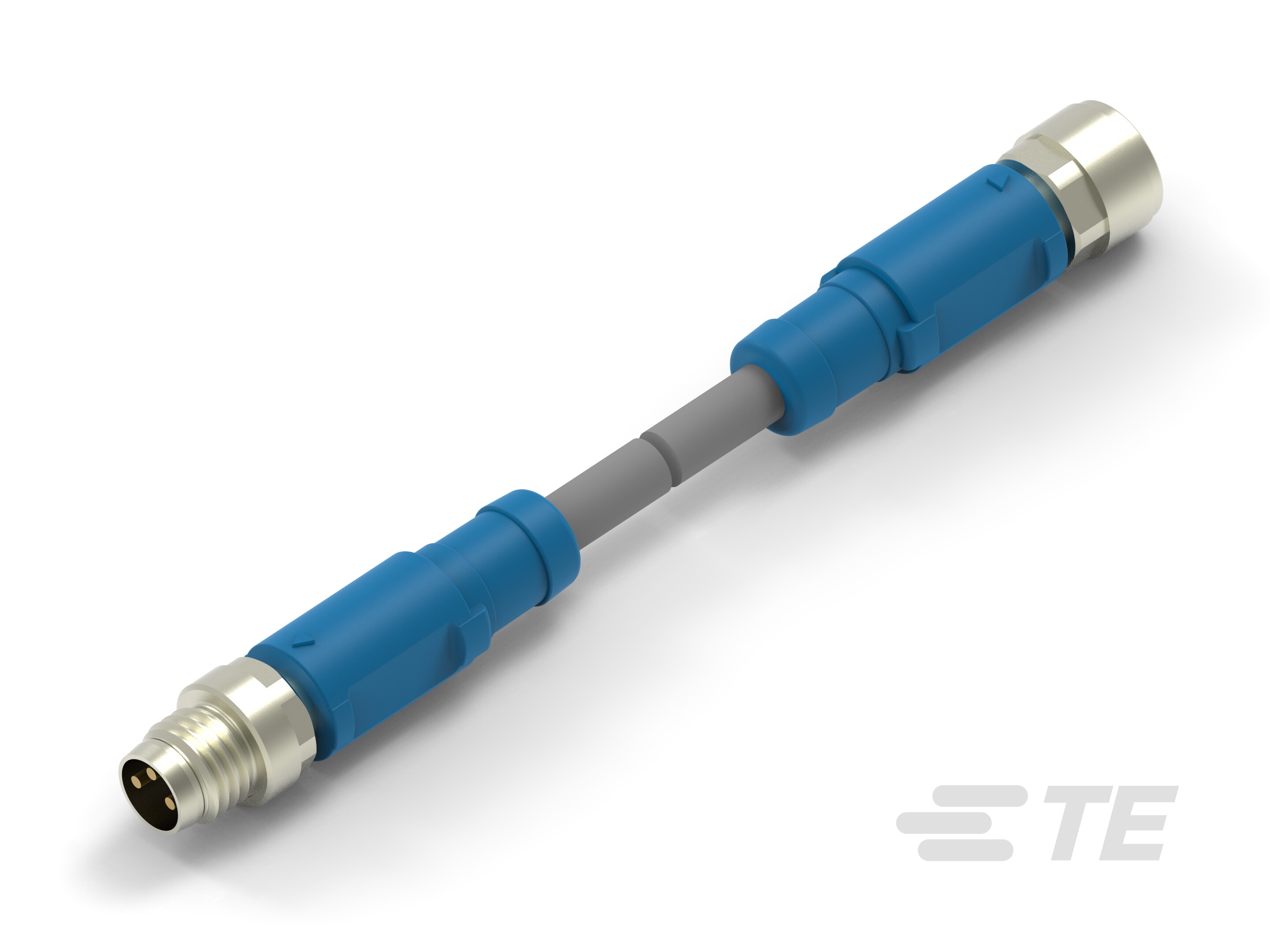

M8 Cable Assembly, 3 Position, Cable Assembly Length 10 m [32.8 ft], Sensor/Actuator, A Code, M8 Plug End A, M8 Plug End B, Double Ended, Nylon GF

Technical Specifications

Parameters and characteristics for this part

SpecificationT4052123003-007
1st Connector GenderMale Pins
1st Connector Mounting TypeFree Hanging (In-Line)
1st Connector Number of Positions3 positions
1st Connector Number of Positions LoadedAll
1st Connector OrientationA
1st Connector Shell Size - InsertM8
1st Connector TypePlug
2nd Connector GenderFemale Sockets
2nd Connector Mounting TypeFree Hanging (In-Line)
2nd Connector Number of Positions3
2nd Connector Number of Positions LoadedAll
2nd Connector OrientationA
2nd Connector Shell Size - Insert (Code)M8
2nd Connector TypeReceptacle
Assembly ConfigurationStandard
Cable MaterialPolyurethane (PUR)
Cable TypeRound
ColorGray
Ingress Protection DescriptionWaterproof, Dust Tight
Ingress Protection IP RatingIP67
Length32.8 ft
ShieldingUnshielded
