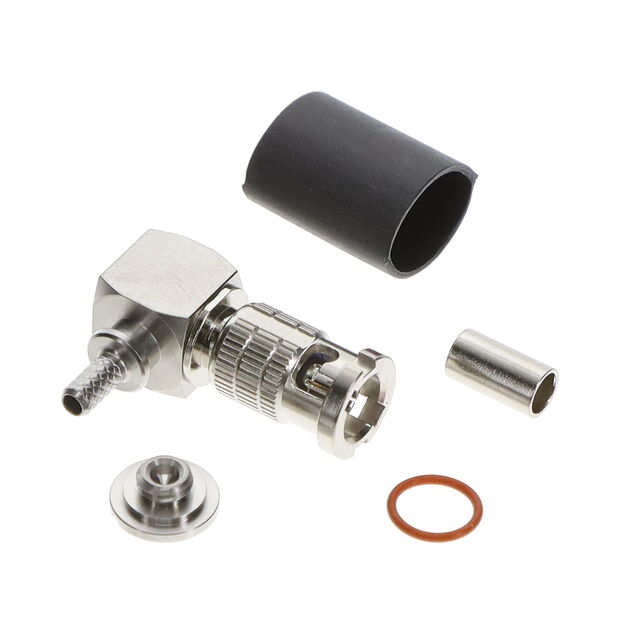

Specification	034-5016

Body Finish	Nickel
Body Material	Brass
Cable Group	316, RG-174, 188, LMR-100, M17/119-RG174, 188A
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	HD, BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max	6000 MHz
Housing Color	Silver
Impedance	50 Ohm
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mating Cycles	500 cycles
Mounting Type	Right Angle, Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Crimp

034-50 Series

Part	Impedance	Connector Type	Fastening Type	Connector Style	Number of Ports	Frequency - Max	Contact Termination	Center Contact Material	Housing Color	Cable Group	Shield Termination	Mounting Type	Includes Total Count	Includes	Center Contact Plating	Operating Temperature (Min)	Operating Temperature (Max)	Body Finish	Dielectric Material	Body Material	Mating Cycles	Ingress Protection Description	Ingress Protection IP Rating	Mounting Feature	Cable Group Diameter (Default)	Cable Group Diameter (Semi Rigid)
McGill Microwave Systems 034-5008	50 Ohm	Male Pin Plug	Bayonet Lock	BNC HD	1	6000 MHz	Solder	Phosphor Bronze	Silver	188 188A 316 LMR-100 M17/119-RG174 RG-174	Crimp	Free Hanging (In-Line)	3 pcs	Connector Contact Ferrule	Gold	-65 °C	165 °C	Nickel	Polytetrafluoroethylene (PTFE)	Brass	500 cycles
McGill Microwave Systems 034-5011	50 Ohm	Male Pin Plug	Bayonet Lock	BNC HD	1	6000 MHz	Solder	Phosphor Bronze	Silver	178A 178B 196 196A M17/93-RG178 RG-178	Crimp	Free Hanging (In-Line)	3 pcs	Connector Contact Ferrule	Gold	-65 °C	165 °C	Nickel	Polytetrafluoroethylene (PTFE)	Brass	500 cycles
McGill Microwave Systems 034-5017	50 Ohm	Male Pin Plug	Bayonet Lock	BNC HD	1	6000 MHz	Solder	Phosphor Bronze	Silver	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Crimp	Free Hanging (In-Line)	5 pcs	Connector Contact Ferrule Heat Shrink Insulator	Gold	-65 °C	165 °C	Nickel	Polytetrafluoroethylene (PTFE)	Brass	500 cycles	Dust Tight Waterproof	IP67
McGill Microwave Systems 034-5067	50 Ohm	Male Pin Plug	Bayonet Lock	BNC HD	1	6000 MHz	Solder	Phosphor Bronze	Silver	188 188A 316 LMR-100 M17/119-RG174 RG-174	Crimp	Free Hanging (In-Line)			Gold	-65 °C	165 °C	Nickel	Polytetrafluoroethylene (PTFE)	Beryllium Copper	500 cycles	Dust Tight Waterproof	IP67
McGill Microwave Systems 034-5025	50 Ohm	Female Socket Recepture	Bayonet Lock	BNC HD	1	6000 MHz	Solder	Beryllium Copper	Silver		Solder	Panel Mount			Gold	-65 °C	165 °C	Nickel	Polytetrafluoroethylene (PTFE)	Brass	500 cycles			Flange
McGill Microwave Systems 034-5073	50 Ohm	Female Socket Jack	Bayonet Lock	BNC HD	1	6000 MHz	Crimp	Beryllium Copper	Silver	RG-178	Crimp	Panel Mount			Gold	-65 °C	165 °C	Nickel	Polytetrafluoroethylene (PTFE)	Brass	500 cycles	Dust Tight Waterproof	IP67	Bulkhead Front Side Nut
McGill Microwave Systems 034-5080	50 Ohm	Female Socket Jack	Bayonet Lock	BNC HD	1	6000 MHz	Solder	Beryllium Copper	Silver	LMR-195	Crimp	Panel Mount			Gold	-65 °C	165 °C	Nickel	Polytetrafluoroethylene (PTFE)	Brass	500 cycles			Bulkhead Front Side Nut
McGill Microwave Systems 034-5020	50 Ohm	Female Socket Jack	Bayonet Lock	BNC HD	1	6000 MHz	Solder	Beryllium Copper	Silver	188 188A 316 LMR-100 M17/119-RG174 RG-174	Crimp	Free Hanging (In-Line)	3 pcs	Connector Contact Ferrule	Gold	-65 °C	165 °C	Nickel	Polytetrafluoroethylene (PTFE)	Brass	500 cycles	Dust Tight Waterproof	IP67
McGill Microwave Systems 034-5026	50 Ohm	Male Pin Plug	Bayonet Lock	BNC HD	1	6000 MHz	Solder	Phosphor Bronze	Gold	RG-405	Solder	Free Hanging (In-Line)	3 pcs	Connector Contact Insulator	Gold	-65 °C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	Brass	500 cycles				0.085 in	0.086 in
McGill Microwave Systems 034-5013	50 Ohm	Female Socket Jack	Bayonet Lock	BNC HD	1	6000 MHz	Solder	Beryllium Copper	Gold		Solder	Board Edge End Launch Panel Mount	3 pcs	Connector Lockwasher Nut	Gold	-65 °C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	Brass	500 cycles			Bulkhead Front Side Nut
