LCCN3105
ActivePasternack

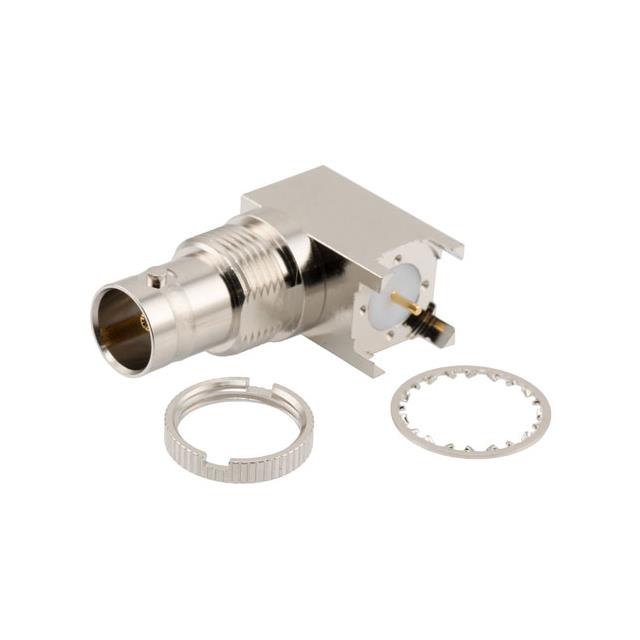

MACHINED BNC FEMALE RIGHT ANGLE
LCCN3105
ActivePasternack
MACHINED BNC FEMALE RIGHT ANGLE
Description
General part information
LCCN3105
BNC Connector Receptacle, Female Socket 75 Ohms Panel Mount, Through Hole, Right Angle Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCN3105 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Recepture, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max | 12 Gbps |
| Housing Color | Silver |
| Impedance | 75 Ohm |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Number of Ports | 1 |
| Shield Termination | Solder |
