ANT-2.4-PML-UFL
ActiveTE Connectivity AMP Connectors

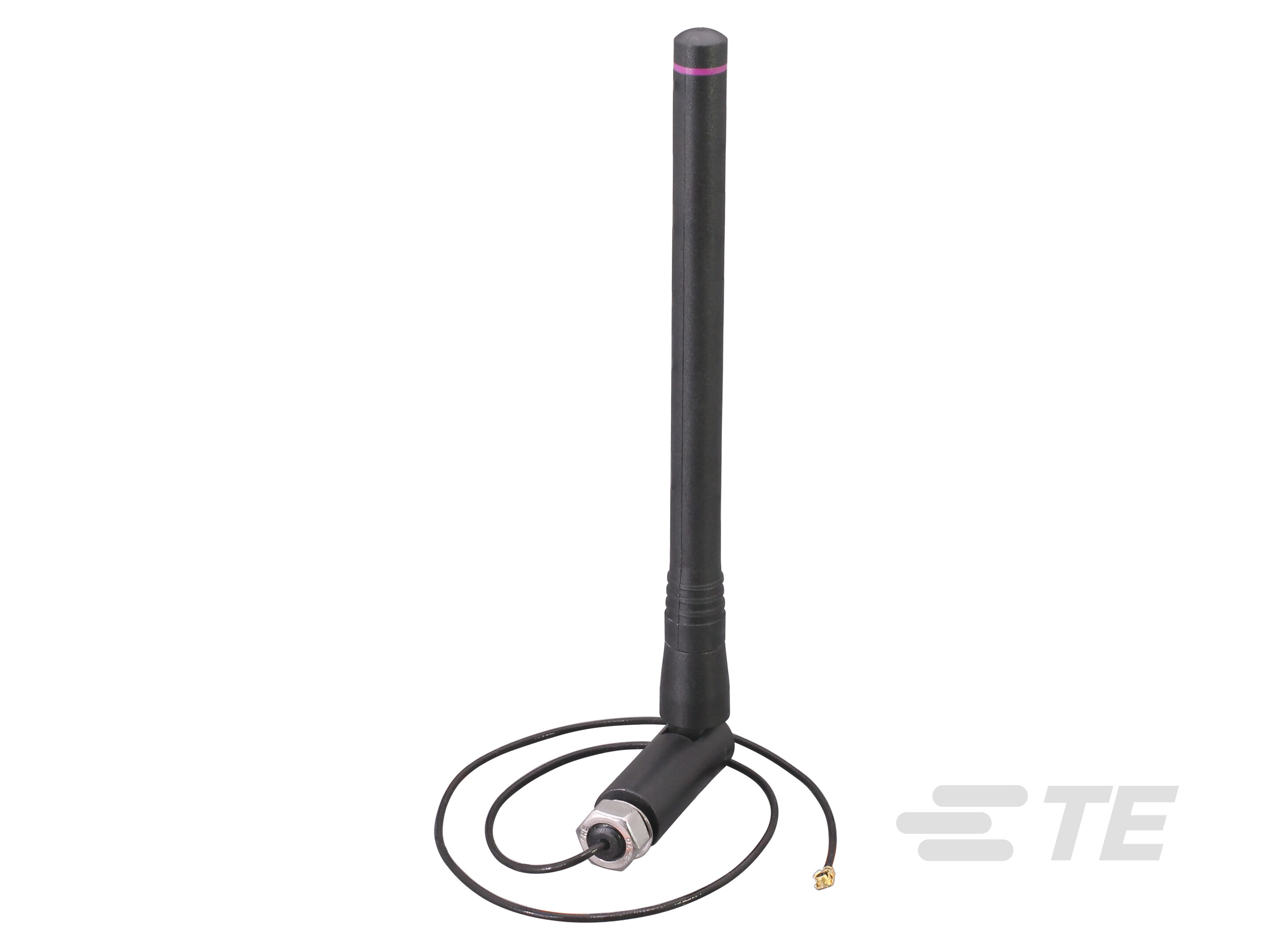

ANTENNA 1/4 WAVE WHIP 2.4GHZ RG178 UFL
ANT-2.4-PML-UFL
ActiveTE Connectivity AMP Connectors
ANTENNA 1/4 WAVE WHIP 2.4GHZ RG178 UFL
Description
General part information
ANT-2.4-PML-UFL
Terminal/Duck Antenna, Single Band, Bluetooth / ISM / Zigbee, External Mount, Stud/Screw/Lug Mount, MHF / MHF1 / U.FL, Omnidirectional, Single Port
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-2.4-PML-UFL |
|---|---|
| Antenna Type | Tilt, Whip |
| Applications | Zigbee™, Wi-Fi, Thread, Bluetooth |
| Features | 305mm, Cable |
| Frequency (Center/Band) | 2.4 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 2.6 GHz |
| Frequency Range (Min) | 2.35 GHz |
| Gain | 2.4 dBi |
| Height (Max) | 5.917 in |
| Mounting Type | Panel Mount |
| Number of Bands | 1 |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| Termination Type | U.FL, I-PEX MHF1 |
| VSWR | 1.9 |
