A18145-06
ActiveLaird Technologies - Thermal Materials
THERM PAD 228.6MMX228.6MM GRAY
A18145-06
ActiveLaird Technologies - Thermal Materials
THERM PAD 228.6MMX228.6MM GRAY
Description
General part information
A18145-06

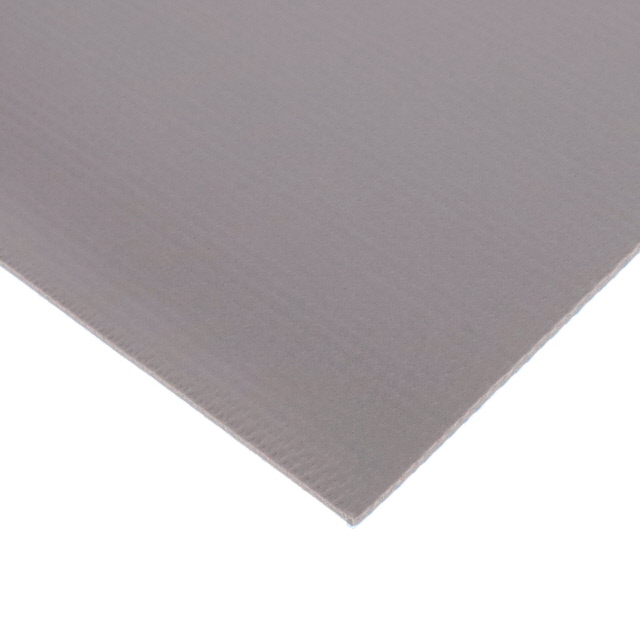

Thermal Pad Gray 228.60mm x 228.60mm Square Tacky - Both Sides
Technical Specifications
Parameters and characteristics for this part
| Specification | A18145-06 |
|---|---|
| Adhesive | Tacky - Both Sides |
| Color | Gray |
| Material | Silicone, Ceramic Filled |
| Outline Length | 228.6 mm |
| Outline Width | 228.6 mm |
| Shape | Square |
| Shelf Life | 24 Months |
| Shelf Life Start | Date of Manufacture |
| Thermal Conductivity | 1.2 W/m-K |
| Thickness | 0.06 in |
| Type | Gap Filler Pad, Sheet |
