1-2232356-5
ActiveTE Connectivity AMP Connectors

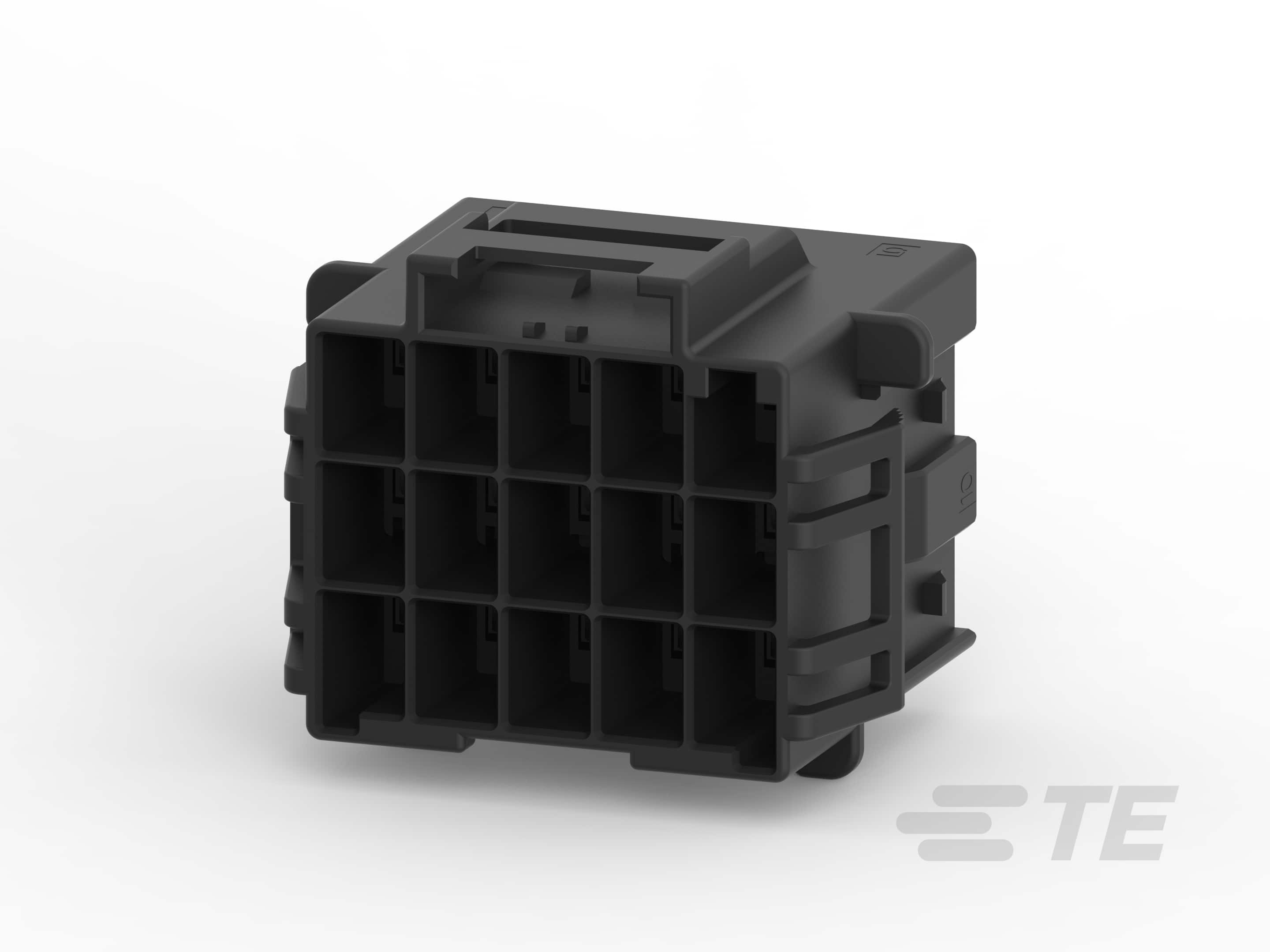

PTL 3X5 CAP PANEL MT HOT WIRE KEY A BLK
1-2232356-5
ActiveTE Connectivity AMP Connectors
PTL 3X5 CAP PANEL MT HOT WIRE KEY A BLK
Description
General part information
1-2232356-5
15 Position, Cap, Housing, Crimp, Wire-to-Wire, UL 94V-0, 6 mm [.236 in] Centerline, 3 Row, 600 VAC, Wire & Cable, Power, Power Triple Lock
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2232356-5 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Fastening Type | Latch Holder |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line), Panel Mount |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.236 in |
| Row Spacing | 0.319 in |
