3-282837-2
ActiveTE Connectivity AMP Connectors

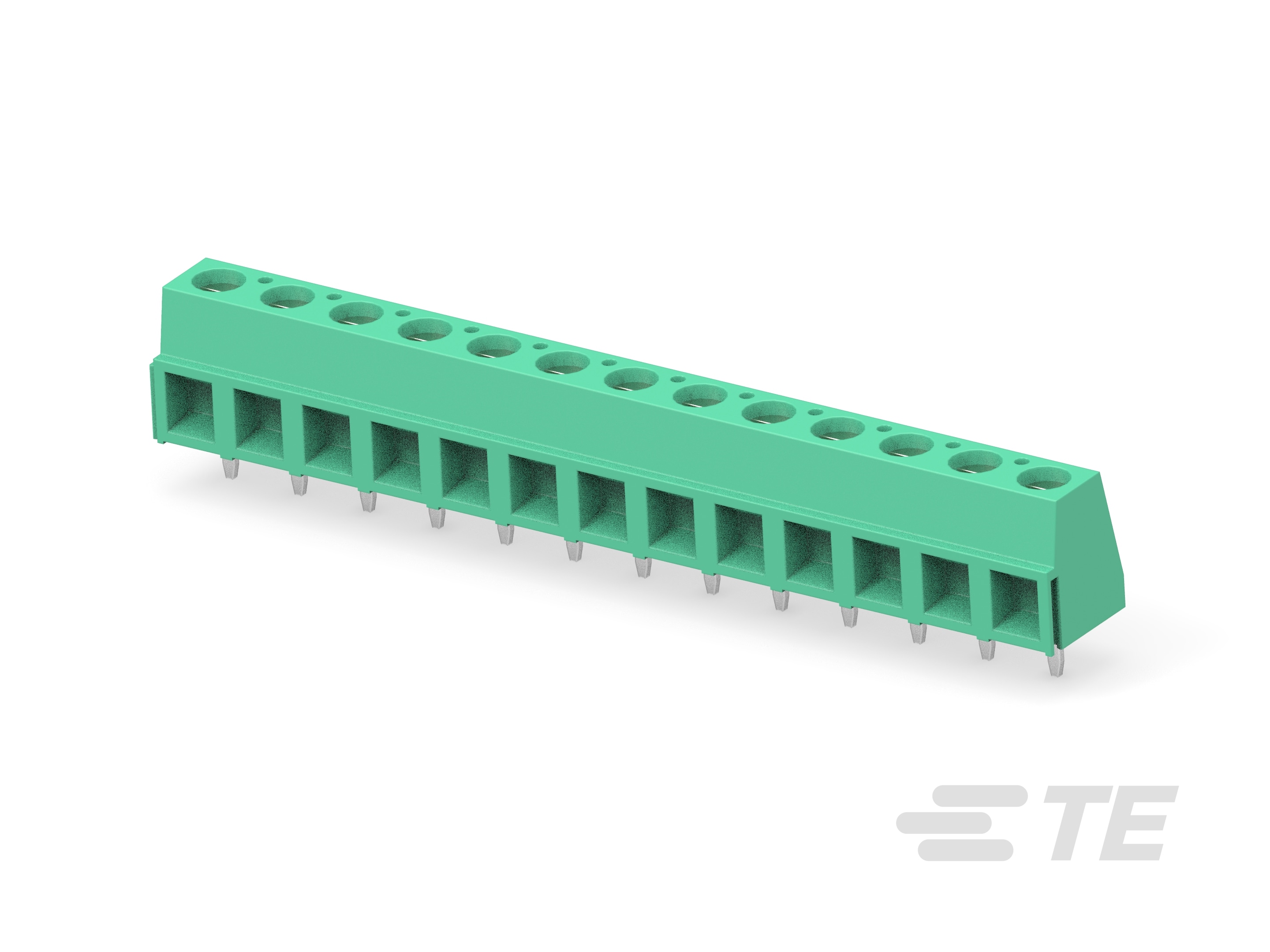

CONN TERMINAL BLOCK 13 POS 5.08MM SOLDER ST THRU-HOLE 13.5A
3-282837-2
ActiveTE Connectivity AMP Connectors
CONN TERMINAL BLOCK 13 POS 5.08MM SOLDER ST THRU-HOLE 13.5A
Description
General part information
3-282837-2
13 Position PCB Terminal Block, Header, Wire-to-Board, 5.08 mm [.2 in] Centerline, 1 Row, 90° Wire Entry Angle, 30 – 16 AWG, .05 – 1.3 mm² Wire
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-282837-2 |
|---|---|
| Color | Green |
| Current | 13.5 A |
| Features | Interlocking (Side), Positions Stamped |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 5.08 mm |
| Positions Per Level | 13 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 28 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
| Wire Termination | Rising Cage Clamp, Screw |
