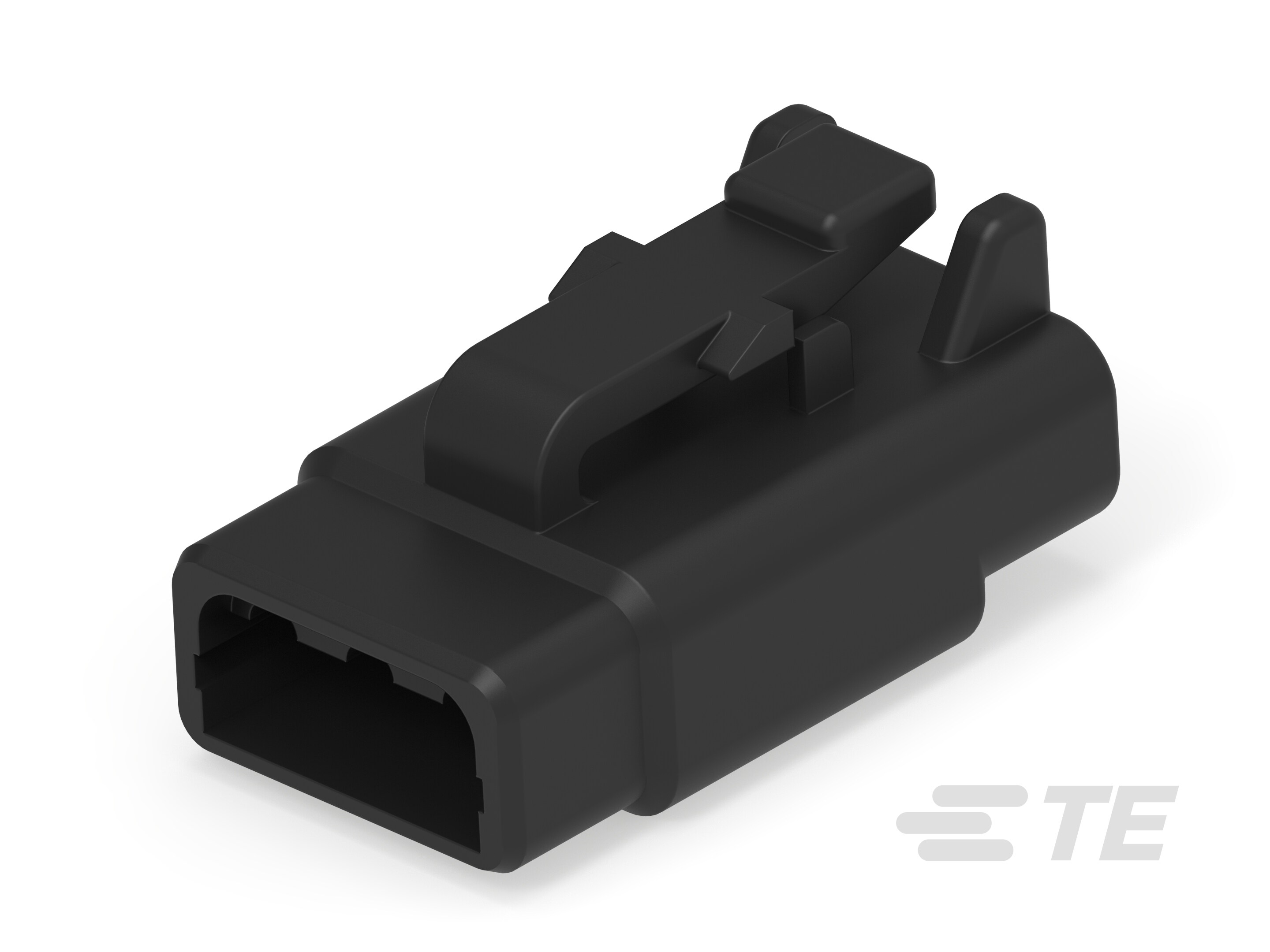

DTM06-3S-E004
ActiveTE Connectivity AMP Connectors
PLG, 3P, BLK, N
DTM06-3S-E004
ActiveTE Connectivity AMP Connectors
PLG, 3P, BLK, N
Description
General part information
DEUTSCH DT Series
3 Position Housing, Housing for Female Terminals, Wire-to-Wire, 4.19 mm [.165 in] Centerline, Sealable, Black, Wire & Cable, Power, Hybrid
Technical Specifications
Parameters and characteristics for this part
| Specification | DTM06-3S-E004 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | IP68 |
| Insulation Material | Nylon, Glass Filled, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.165 in |
