Technical Specifications
Parameters and characteristics for this part
| Specification | 11_SMA-50-3-236/133_NP |
|---|---|
| Body Finish | White Bronze |
| Body Material | Brass |
| Cable Group | RG-400 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.93 | |
| 10 | $ 6.27 | |||
| 25 | $ 5.92 | |||
| 50 | $ 5.78 | |||
| 100 | $ 5.49 | |||
| 250 | $ 4.91 | |||
| 500 | $ 4.62 | |||
| 1000 | $ 4.04 | |||
| 2500 | $ 3.84 | |||
Description
General part information
11_SMA-50-3-236/133_NP

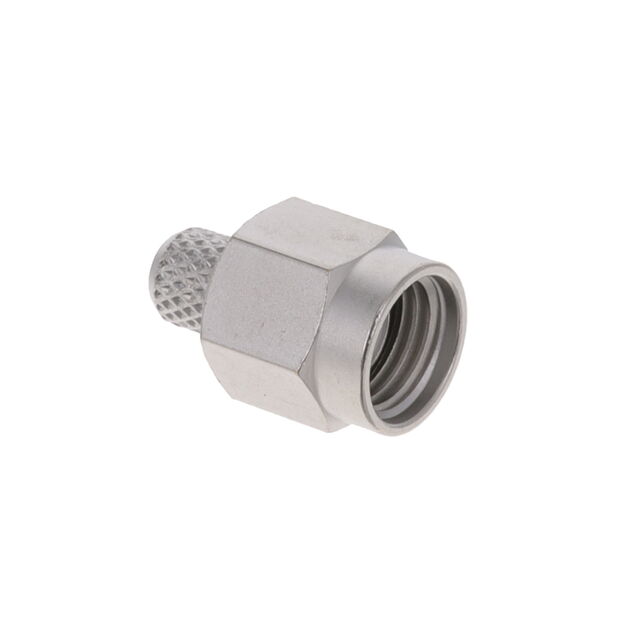

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
