AXA-RSPRSP
ActivePasternack

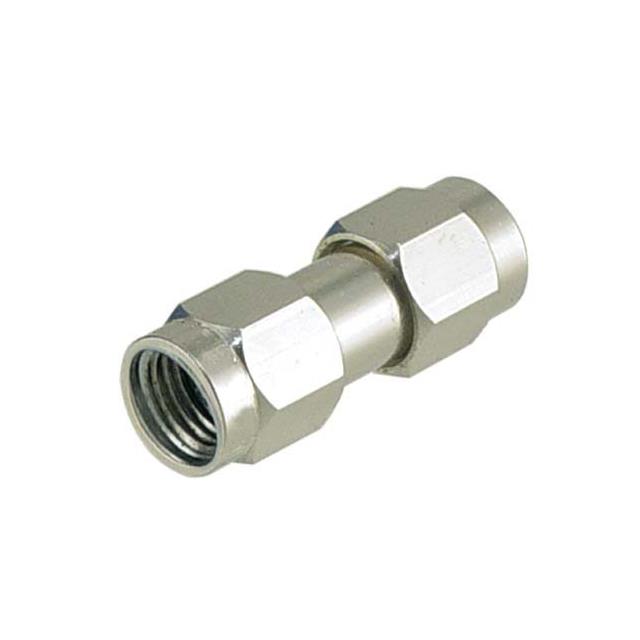

ADPRP-SMA PLUG TO RP-SMA PLUG
AXA-RSPRSP
ActivePasternack
ADPRP-SMA PLUG TO RP-SMA PLUG
Description
General part information
AXA-RSPRSP
Adapter Coaxial Connector SMA Plug, Male Pin To RP-SMA Plug, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | AXA-RSPRSP |
|---|---|
| Adapter Series | SMA to RP-SMA |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Male Pin, SMA Plug |
| Convert To (Adapter End) | Female Socket, RP-SMA Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 6000 MHz |
| Impedance | 50 Ohm |
| Insertion Loss | 0.15 dB |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
