2296206-6
ActiveTE Connectivity AMP Connectors

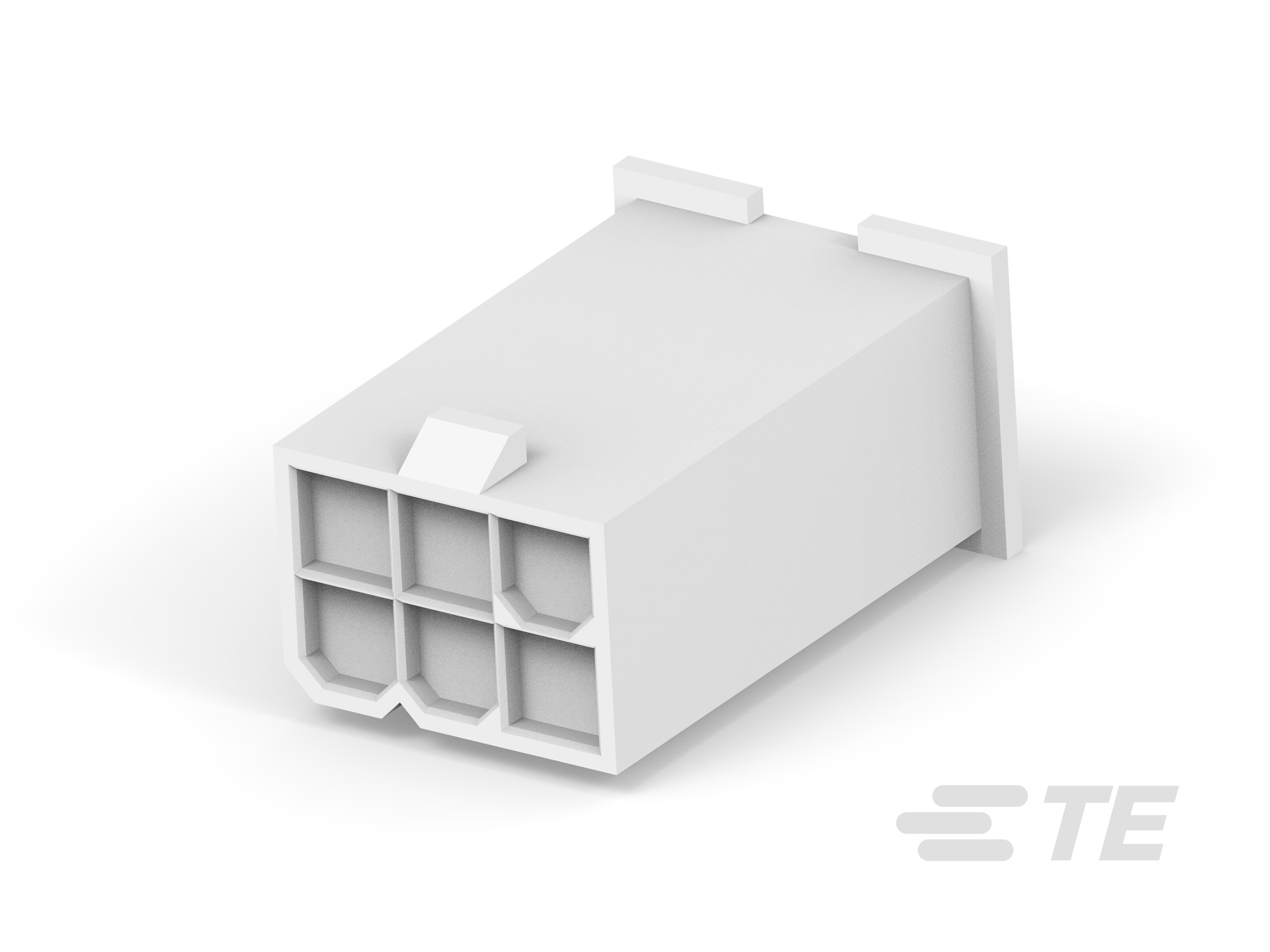

RECTANGULAR HOUSING, PLUG, 6POS, 4.2MM ROHS COMPLIANT: YES
2296206-6
ActiveTE Connectivity AMP Connectors
RECTANGULAR HOUSING, PLUG, 6POS, 4.2MM ROHS COMPLIANT: YES
Description
General part information
2296206-6
6 Position, Plug, Housing, Wire-to-Wire, 4.2 mm [.165 in] Centerline, 2 Row, Wire & Cable, Power, Cable Mount (Free-Hanging)
Technical Specifications
Parameters and characteristics for this part
| Specification | 2296206-6 |
|---|---|
| Color | Natural |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Insulation Material | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.165 in |
| Row Spacing | 0.165 in |
