382811-2
ActiveTE Connectivity AMP Connectors

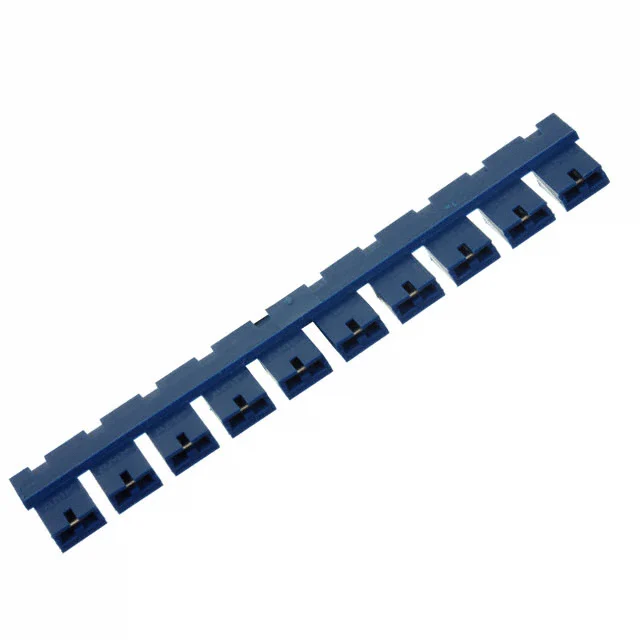

SHUNT, ECON, PHBR15 AU, BLUE
382811-2
ActiveTE Connectivity AMP Connectors
SHUNT, ECON, PHBR15 AU, BLUE
Description
General part information
382811-2
Economy Shunt, Open Top, 2 Position, 2.54 mm [.1 in] Centerline, Signal, -65 – 105 °C [-85 – 221 °F]
Technical Specifications
Parameters and characteristics for this part
| Specification | 382811-2 |
|---|---|
| Color | Blue |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Gender | Female Sockets |
| Grid Columns | 2 |
| Grid Rows | 1 |
| Height | 0.25 in |
| Housing Material | Polyester, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions or Pins (Grid) | 2 |
| Pitch | 0.1 in |
| Type | Open Top |
