87175-8
ActiveTE Connectivity AMP Connectors

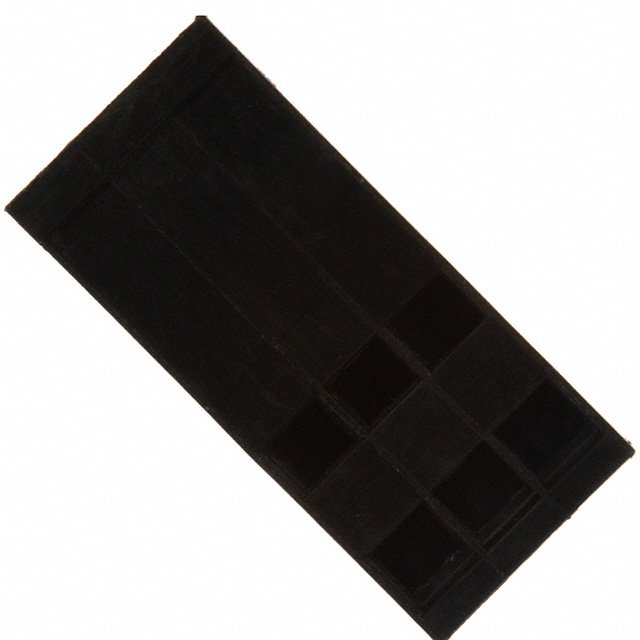

CONN RCPT HSG 3POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
87175-8
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 3POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 87175-8 | 87175 Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Insulation Material | Polyester, Glass Filled | Polyester, Glass Filled |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | - | 1 - 14 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
87175 Series
CONN RCPT HSG 3POS 2.54MM
| Part | Mounting Type | Contact Termination | Connector Type | Insulation Material | Number of Rows | Contact Type | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Note | Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 87175-8 | Free Hanging (In-Line) | Crimp | Receptacle | Polyester, Glass Filled | 1 | Female Socket | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | Contacts Not Included | Black | |
TE Connectivity AMP Connectors 2-87175-4 | Free Hanging (In-Line) | Crimp | Receptacle | Polyester, Glass Filled | 1 | Female Socket | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | Contacts Not Included | Black | 11 |
TE Connectivity AMP Connectors 2-87175-8 | Free Hanging (In-Line) | Crimp | Receptacle | Polyester, Glass Filled | 1 | Female Socket | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | Contacts Not Included | Black | 13 |
TE Connectivity AMP Connectors 2-87175-1 | Free Hanging (In-Line) | Crimp | Receptacle | Polyester, Glass Filled | 1 | Female Socket | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | Contacts Not Included | Black | 10 |
TE Connectivity AMP Connectors 1-87175-4 | Free Hanging (In-Line) | Crimp | Receptacle | Polyester, Glass Filled | 1 | Female Socket | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | Contacts Not Included | Black | 6 |
TE Connectivity AMP Connectors 1-87175-5 | Free Hanging (In-Line) | Crimp | Receptacle | Polyester, Glass Filled | 1 | Female Socket | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | Contacts Not Included | Black | 7 |
TE Connectivity AMP Connectors 2-87175-5 | Free Hanging (In-Line) | Crimp | Receptacle | Polyester, Glass Filled | 1 | Female Socket | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | Contacts Not Included | Black | 12 |
TE Connectivity AMP Connectors 1-87175-0 | Free Hanging (In-Line) | Crimp | Receptacle | Polyester, Glass Filled | 1 | Female Socket | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | Contacts Not Included | Black | 4 |
TE Connectivity AMP Connectors 87175-6 | Free Hanging (In-Line) | Crimp | Receptacle | Polyester, Glass Filled | 1 | Female Socket | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | Contacts Not Included | Black | 2 |
TE Connectivity AMP Connectors 87175-2 | Free Hanging (In-Line) | Crimp | Receptacle | Polyester, Glass Filled | 1 | Female Socket | 2.54 mm | 0.1 in | -65 ░C | 105 ░C | Contacts Not Included | Black | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 15000 | $ 1.14 | |
Description
General part information
87175 Series
3 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
