929937-6
ActiveTE Connectivity AMP Connectors

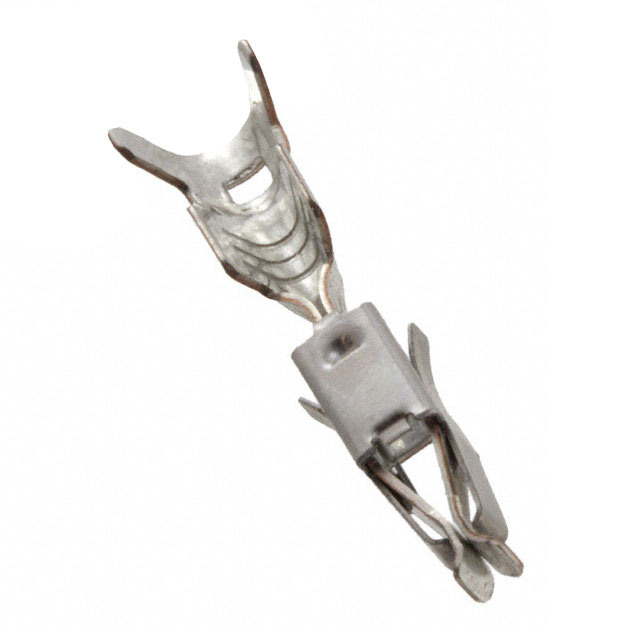

CONN SOCKET 13-17AWG CRIMP SILVR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
929937-6
ActiveTE Connectivity AMP Connectors
CONN SOCKET 13-17AWG CRIMP SILVR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 929937-6 | 929937 Series |
|---|---|---|
| Contact Finish | Silver | Tin, Silver |
| Contact Finish Thickness | 0.76 Ám | 0.76 - 1 Ám |
| Contact Finish Thickness | 30 Áin | 30 - 39.4 Áin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Type | Power | Power |
| Wire Gauge [Max] | 17 AWG | 17 AWG |
| Wire Gauge [Min] | 13 AWG | 13 AWG |
929937 Series
CONN SOCKET 13-17AWG CRIMP TIN
| Part | Contact Finish Thickness | Contact Finish Thickness | Contact Termination | Type | Contact Finish | Wire Gauge [Min] | Wire Gauge [Max] | Pin or Socket |
|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 929937-1 | 39.4 Áin | 1 Ám | Crimp | Power | Tin | 13 AWG | 17 AWG | Socket |
TE Connectivity AMP Connectors 929937-6 | 30 Áin | 0.76 Ám | Crimp | Power | Silver | 13 AWG | 17 AWG | Socket |
TE Connectivity AMP Connectors 929937-3 | 39.4 Áin | 1 Ám | Crimp | Power | Tin | 13 AWG | 17 AWG | Socket |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.43 | |
| 10 | $ 0.38 | |||
| 25 | $ 0.37 | |||
| 50 | $ 0.37 | |||
| 100 | $ 0.34 | |||
| 250 | $ 0.28 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.25 | |||
| Tape & Reel (TR) | 3700 | $ 0.20 | ||
| 7400 | $ 0.18 | |||
| 11100 | $ 0.16 | |||
Description
General part information
929937 Series
Socket Contact Silver 13-17 AWG Crimp Power
