TR2/6125FA375MA
ObsoleteEaton - Electronics Division
FUSE BRD MT 375MA 125VAC/VDC SMD
TR2/6125FA375MA
ObsoleteEaton - Electronics Division
FUSE BRD MT 375MA 125VAC/VDC SMD
Description
General part information
TR2/6125FA375MA

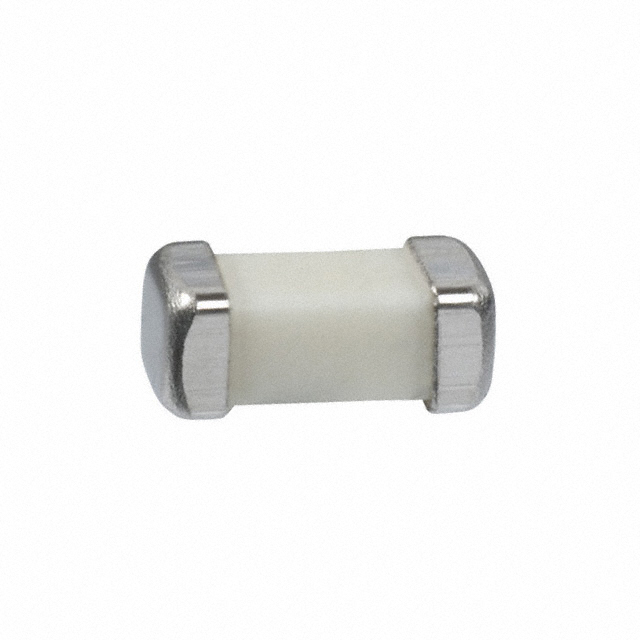

375 mA 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
Technical Specifications
Parameters and characteristics for this part
| Specification | TR2/6125FA375MA |
|---|---|
| Approval Agency | UL, CSA |
| Breaking Capacity (AC) | 50 A |
| Breaking Capacity (DC) | 300 A |
| Current Rating | 375 mA |
| DC Cold Resistance | 0.36 Ohms |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Melting I²t | 0.03 |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, Square End Block |
| Response Time | Fast Blow |
| Size / Dimension Height | 0.102 in |
| Size / Dimension Length | 0.24 in |
| Size / Dimension Width | 0.102 in |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 V |
